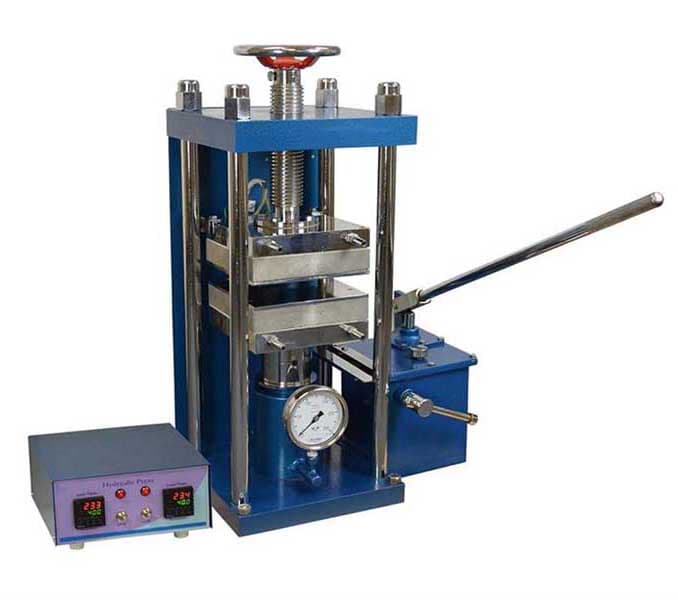

25T Hydraulic Lamination Hot Press Machine With Two Temp. Controller

Max. Working Pressure

25 metric Tone ( 250 KN)

Voltage

220VAC +/-10%, 50/60Hz 4000W Max.  ( 25A breaker required )

Pressure Gauge

Measuring Accuracy is  +/-1.25 KN

Heated Platen Area

·         Platen Area:   200mm x200mm

·         Material:        Headen Steel

·         Surface:         Flat with CNC grinding

Max. Travel Distance

·         140mm Max

Max. Working Temperature

·         15 minutes Max at 350°C without water cooling.

·         350°C continuously with water cooling.

·         250°C continuously without water cooling.

Heating Rate

·         3°C/min

Water Cooling Requirement

·         3 pairs (6 ports) of barbed fittings for water cooling.

·         Hydraulic cylinder cooling with a pair of barbed fittings for 10mm I.D. tube. Watercooling is required

to prevent oil sealing gasket from melting and to ensure the cylinder's performance.

(Click pic to the left for detail.)

·         Top and bottom heating plate with two pairs of barbed fittings for 10mm I.D. tube.

Water cooling hot plate is possible for rapid sample cooling after a hot pressing process.

·         Water flow requirement: ≥10L/min, <25°C, >25PSI

Temperature Control

·         Two digital controller installed in one box with one point control  and auto-tune faction

·         Temperature accuracy ±1°C.

Power Requirement

·         220VAC +/- 10%  ( 208 -240V)  3800W max.

Compliance

·         CE Certified

Shipping Size

50''(L) x 41''(W) x 46''(H)

Shipping Weight

500 lbs

Warranty

·       Two years limited warranty with lifetime support
