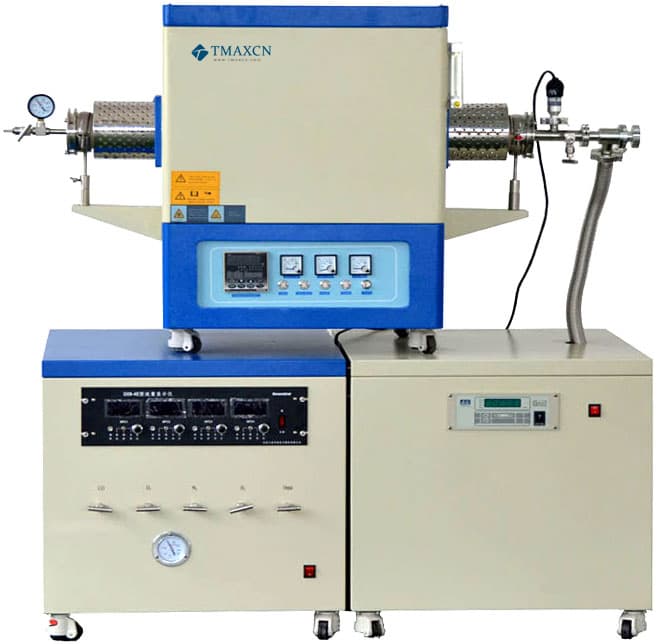

1400°C CVD Tube Furnace With Gas Mixing & Pumping System

1400°C CVD Tube Furnace With Gas Mixing & Pumping System



VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.

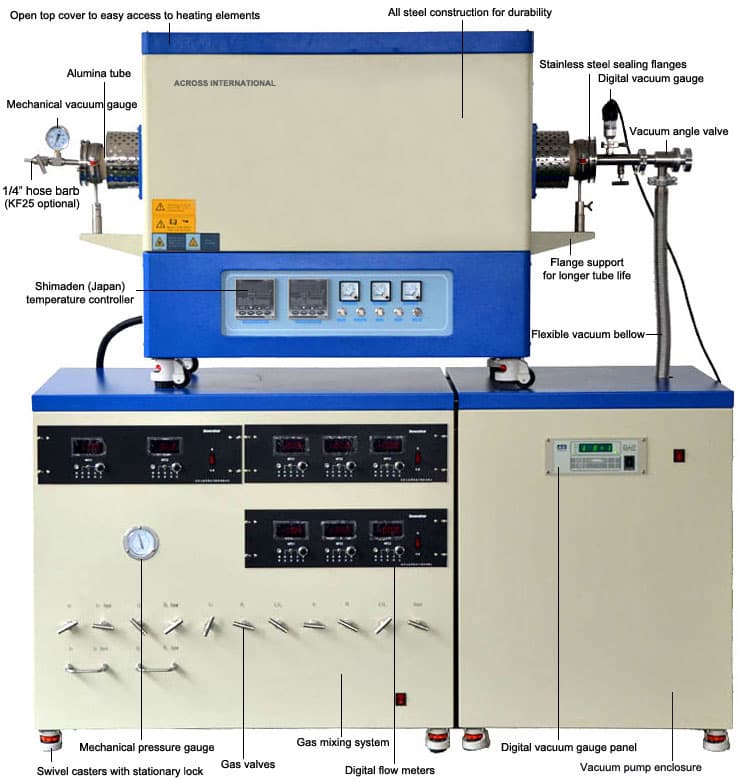

TMAX-1400PECVDseries Chemical Vapor Deposition (CVD) tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

Features

·

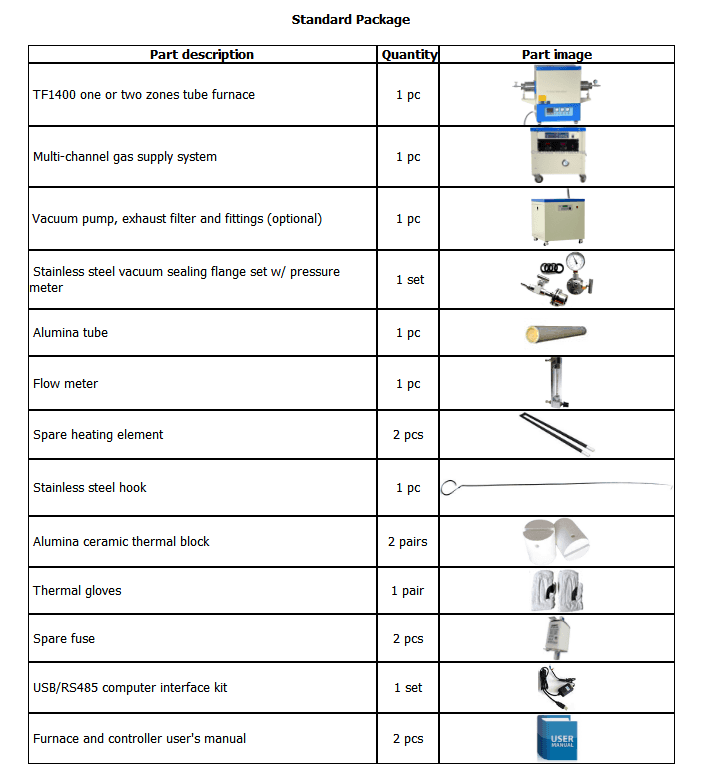

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

·
Dual flanges support ensures better sealing and longer tube life.

·
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

·
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

·
Built-in computer interface.

·
Long life type S thermocouple

Safety

·     Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

·      Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.



Specifications
