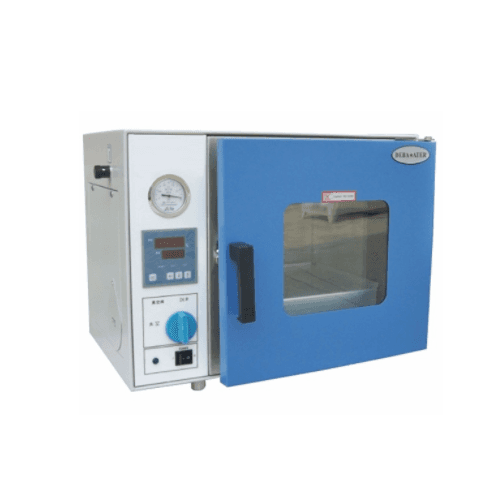

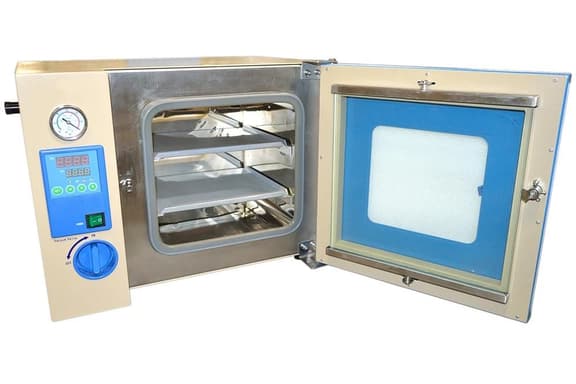

Laboratory Vacuum Electrode Drying Oven With Microcomputer Control

Model Number:: TMAX-DZF-6020
Type:: Vacuum Drying Oven
Dimension(L*W*H):: 300*300*275mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Laboratory Vacuum Electrode Drying Oven With Microcomputer Control

1 The Vacuum Oven dzf 6020 Is a laboratory vacuum oven mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.

2 The Vacuum Oven dzf 6020 for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.

3 Use Vacuum Oven dzf 6020 for material heating drying under vacuum states has advantages :

3.1 Can reduce the drying temperature

3.2 Avoid some objects heating to oxidation

3.3 Avoid heating air to kill living cells

3.4 No dust damage

Model	Vacuum oven DZF 6020
Source voltage	AC 220V/110V, 50HZ
Power	500W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	±0.5℃
Vacuum degree	-0.1MPa
Inner box size(LWH)	300300270mm
Dimension(LWH)	580450450mm
Temperature controller	High precision microcomputer temperature controller, accurate temperature control, working temperature can be set, error alarm function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened hulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	1pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf For air cycle

Model	DZF-6021	DZF-6051	DZF-6020	DZF-6050	DZF-6090	DZF-6210	DZF-6250
Temperature range	RT+10-200℃		RT+10-250℃
Temperature fluctuation	0.1℃/±0.5℃
Vacuum degree	-0.1MPa
Source voltage	AC220V 50HZ					AC380V 50HZ
Power	500w	1000w	500w	1000w	1400w	2100w	3000w
Inner box size	300x300 x275	410x370 x345	300x300 x275	415x370 X345	450x450 X450	560x640 X600	700x600 x600
Dimension	580x450 x450	720x525 X535	580x450 x450	720x525 X535	615x590 X1470	720x820 X1750	1050x760 X910
Shelf	1	2	1	2	2	3	4
Inner box material	galvanized sheet		stainless steel
Temperature controller (standard)	microcomputer digital display controller
Ambient temperature	+5~40℃
DZF-6090 & DZF-6210 equipped with vacuum pump.Rest models do not with vacuum pump .
