Product Description

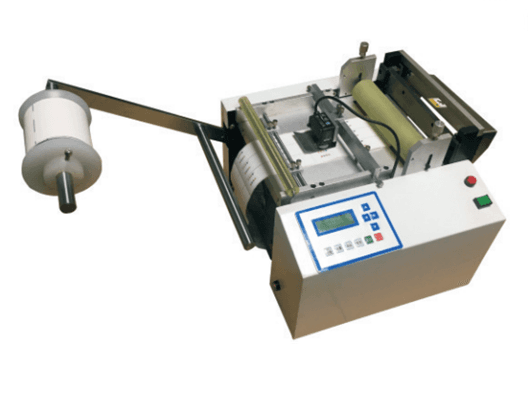

1-380mm Width Positioning Color Tracing Slicer Cutting Machine

Features

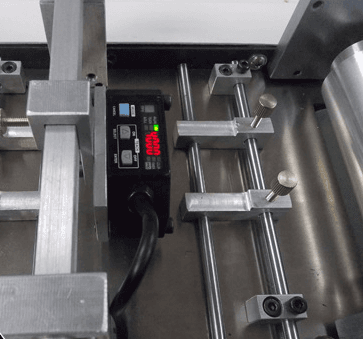

TMAX-HZX-100S1 positioning color tracing slicer adopts imported optical fiber as electronic eye detection tool, with high sensitivity and fast response, and can accurately detect materials in high-speed operation;

Equipped with liquid crystal display, simple and intuitive, so that the operation becomes more simple, clear key instructions, let people at a glance. Novices can also get started quickly;

Automatic cutting, only need to input the distance between the two marks can be fully automatic processing;

Cutting speed : 100 times per minute ( 50mm length , for example)

Cuttable materials: Non drying adhesive , label film , reflective film , plastic film , protectivefilm , mobile phone film , flat film , etc .

cutting material

Specification

Model

Cutting Tool

Speed

(mm)

Weight

(kg)

Cutting Width

 (mm)

Cutting Length

(mm)

Precision

(mm)

Cutting Thickness

(mm)

HZX-100S

Upper and lower knives

34

30

1-95

0-9999.9

0.1

0.5

HZX-200S

Upper and lower knives

34

38

1-180

0-9999.9

0.1

0.5

HZX-300S

Upper and lower knives

34

45

1-280

0-9999.9

0.1

0.7

HZX-400S

Upper and lower knives

34

60

1-380

0-9999.9

0.1

0.8

positioning color tracing slicer

positioning color tracing slicer
