Battery Roll-to-Roll Slitting Slitter Machine For Lithium Battery Electrode Sheet Making

Model Number:: TMAX - 520A
Type:: Electrode Slitting Machine
Dimension(L*W*H):: 20-500mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

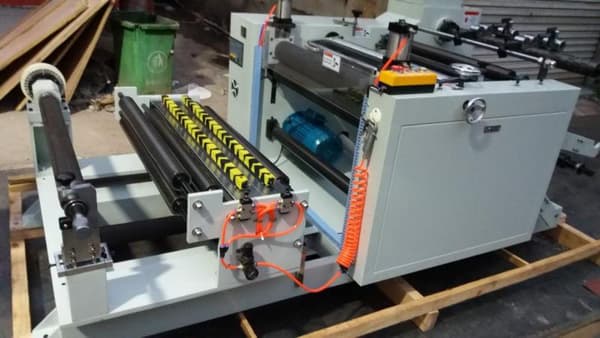

Battery Roll-to-Roll Slitting Slitter Machine For Lithium Battery Electrode Sheet Making

1. Applicable industries and products

This machine is used for slitting and processing of lithium battery pole pieces.
Slitting and processing of copper foil, aluminum foil, OPP, PE, PP, PVC, release paper, release film, etc.
Automatic unwinding of coiled material→deviation correction→slitting→receiving

2. Features

This machine is a high-precision, high-sensitivity slitting equipment. Both receiving and unloading adopt high-precision air-expanding shafts. The tension is freely adjusted by magnetic powder clutches . It can realize automatic detection, automatic deviation correction, automatic meter counting, anti-scratch materials, automatic stop at set length, and alarm. It has the advantages of fast speed, accurate cutting and simple operation.

Air knife: 5 sets

3. Equipment technical parameters

machine type	HC-520A
Cutting speed	35 m/min
Maximum paper width:	52 0 mmm
Minimum cutting width:	30 mm
Maximum unwinding diameter:	600 mm
Maximum winding diameter:	450mm
Unwinding drum diameter :	76mm (can be customized according to customer requirements)
Rewinding drum diameter :	76mm (can be customized according to customer requirements)
Slitting precision:	±0.2 mm
Glitch Accuracy :	≤30μm _
Machine weight:	about 1300 kg
Power supply :	380V / 3phase/50hz
Motor Power:	3 KW +4KW
compressed air	0.5-0.7 MPa120L/Min (customer self-prepared) φ10 air pipe
Machine size (length, width and height):	About 160014001200 mm

4. Equipment main configuration

serial number	name	brand	Remark
1	PLC	Siemens
2	touch screen	Taiwan Weilun
3	cylinder	SMC
4	Inverter	Inovance	2 units
5	main motor	Delta	2 units
6	Ultrasonic correction	chongqing bat
7	Static bar	Kodick
