Benchtop Vacuum Glove Box With Gas Purification System And Digital Control For H2O/O2 Less than 1ppm



Benchtop Vacuum Glove Box With Gas Purification System And Digital Control For H2O/O2 Less than 1ppm

1 The glove box can supplya Closed working environment with Maintaining clean and humidity. It is used for lithium battery producing process from electrolyte filling to vacuum pre-sealing.

2 The Electrolyte filling machine, vacuum holding box and vacuum pre-sealing machine need to put in the glove box with making battery under environment without Much H2O and O2. We can input dry N2 into the glove box to improve the environment.

3 This glove box adopts Fission modular design, we can add or combination every section as we wanted according to production line.

4 Transparent toughened glass surface as a visual operation, convenient to observe

5 Designed with antechamber and Transition tank in front and end, easy for battery loading. And the antechamber and also be customized with Vacuum function.

6 Dimension : 1000*1400*1800mm/section, customized

7 Source voltage : AC110V/220V  50/60HZ

8 Power : 0.5KW

9 Air source : 0.6-0.7MPa, 5L/S

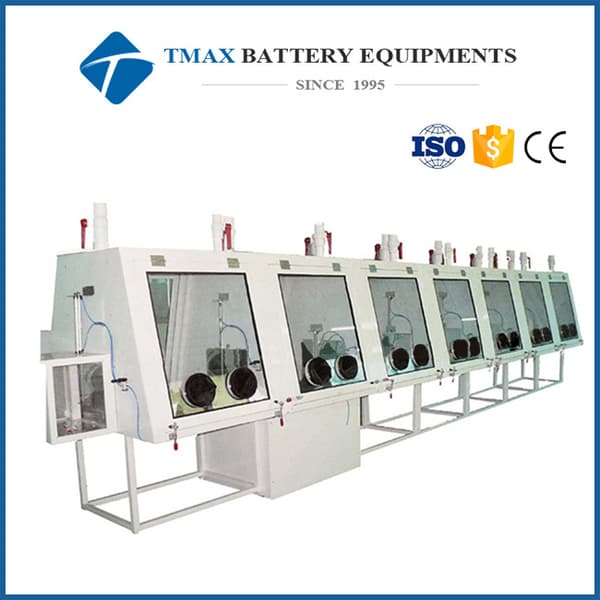

Finished glove box according to customer’s requirement:
