Compact Electric Disassembling Machine For 18650 Cylindrical Cases (Optional Dies Available For 26650 Or 32650)

Compact Electric Disassembling Machine For 18650 Cylindrical Cases (Optional Dies Available For 26650 Or 32650)

Model Number:
MSK-530
Dimension(L*W*H):
480 x320 x 230mm
Net Weight:
35kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

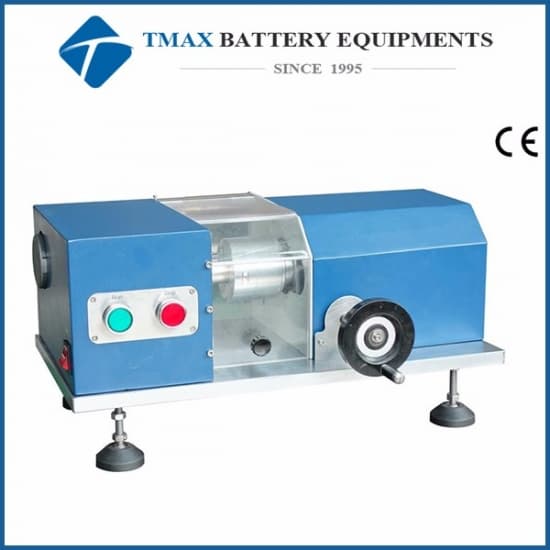

High Quality Disassembling Machine for 18650 Cylindrical Cases (Optional Dies available for 26650 or 32650) - MSK-530

MSK-530 is a compact manually-operated machine for disassembling cylinder cases in battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage

AC220V Single phase (110VAC available with a transformer)

Power

100W

Slicing Motor Speed

1000 rpm

Die Rotating Speed

1000 rpm

Micrometer Accuracy

0.05mm

Warranty

One year limited with lifetime support

Product Dimensions

480mm(L) x320mm(W) x 230mm(H)


Accessories

1.      Standard disassembling die for 18650 case.

2.      5 pcs carbide cutting blades are included.

3.      Additional die sets available for 26650 and 32650 as option.

4.      Additional blade and pin wrench for changing blades are available upon request.

Net Weight

35 kg

Shipping Weight & Dimensions

100 lbs; 40"x20"x20"

Attention

Considering the best interest of the blade's service life, a low feeding speed is preferred. Normally, 45 seconds is needed to cut through the cylinder casing.
