Desktop Electric Pouch Cell Electrode Sheet Stacking Machine With Digital Counter For Lab Battery Research

Desktop Electric Pouch Cell Electrode Sheet Stacking Machine With Digital Counter For Lab Battery Research

Model Number:
TMAX-DP-200
Type:
Electrode Stacking Machine
Dimension(L*W*H):
L650mmW400mmH700mm
Net Weight:
30kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Desktop Electric Pouch Cell Electrode Sheet Stacking Machine With Digital Counter For Lab Battery Research

It is suitable for the stacking process of pouch cell. The positive and negative electrodes and separator are laminated or stacking in Z fashion.

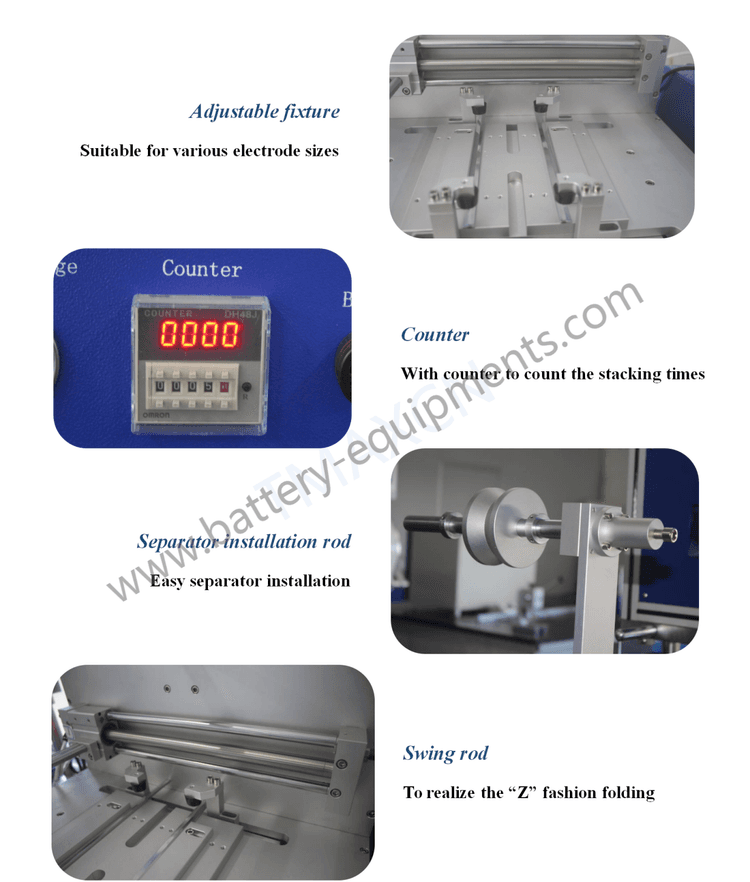

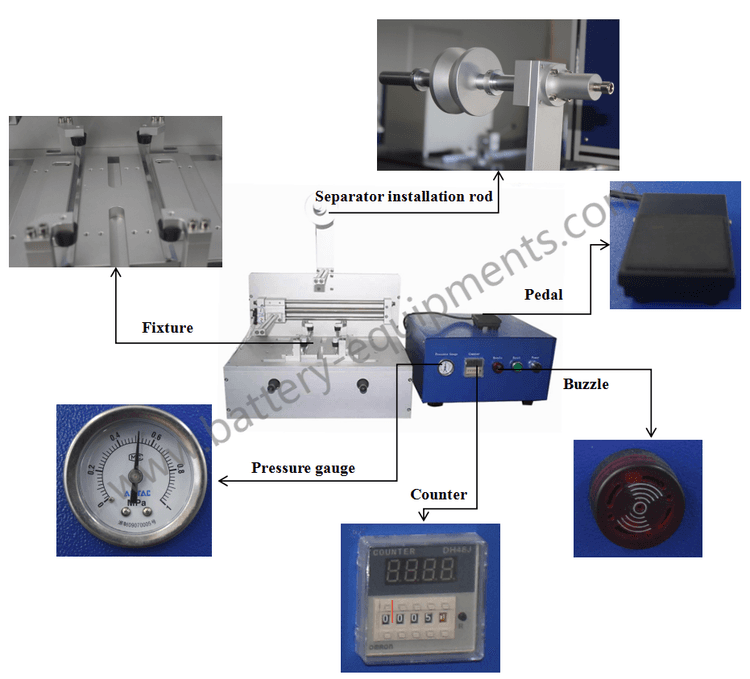

Features

*Table type, can be placed on the ordinary desktop;

*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

*High efficiency, with digital counter;

*Foot switch is used to control the action of air cylinder;

*The machine is small in size and beautiful in appearance;

Specifications

Stacking mode

 Z fashion

Suitable separator coil

Roll type separator, 3-inch roll core, max.φ200mm applicable

Applicable electrode size

Length:20～200mm

Width: 20～200mm

Thickness: within 18mm

Larger model for apply larger electrode is also available

Swing rod travel distance

300mm；

Power supply

AC220/110V; 50/60Hz

Power

200W

Air pressure source

0.4MPa～0.7MPa

Machine dimensions

L650mmW400mmH700mm

Control box size

L200mmW300mmH380mm

Weight

30Kg
