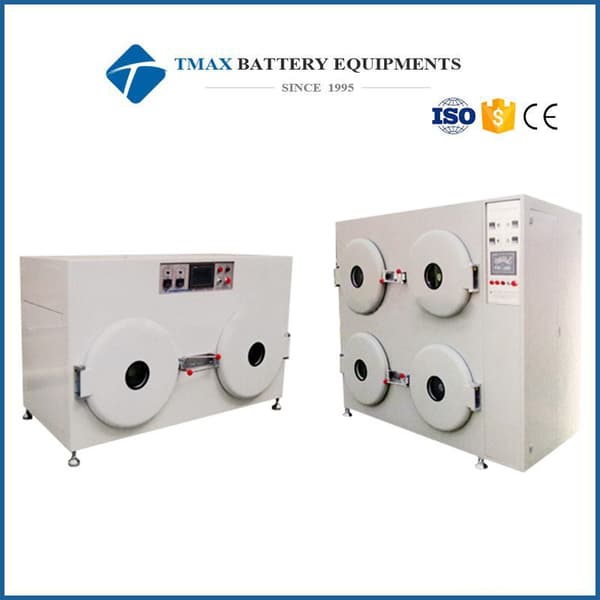

Four Drum Round Vacuum Oven For Li-ion Battery Electrode Drying Process

Model Number:: TMAX-JK-ZKHX-AR4
Type:: Vacuum Drying Oven
Input Power:: 4.5KW*4
Dimension(L*W*H):: 1850*2280*1000mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Four Drum Round Vacuum Oven For Li-ion Battery Electrode Drying Process

1 The Round Vacuum Oven is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.

2 The TMAX-JK-ZKHX-AR4 Round vacuum oven is equipped with four drums, you can also choose single drum, two drum according the battery production line output.

Model	Four Drum Round Vacuum Oven
Working Voltage	3phase, 380V
Max. Power Consumption	4.5KW*4
Temperature range	RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
Vacuum degree	0~-0.098Mpa, Can maintain limited vacuum degree ≥96% after 24hours
Working chamber size	Dia 550*750, can customized according request
Product Dimensions (HWD)	185022801000mm
Air supply	Vacuum :-0.095~-0.1Mpa Compressed air :0.4~0.5Mpa Dry air :0.1~0.2Mpa
Temperature increase speed	From RT 25℃ to 80℃ need about 25min
Heating mode	Electric heating
Working chamber material	SUS stainless steel
Warranty	One year limited warranty with lifetime support
