High Speed Vibratory Ball Mill Used for Small And Micro Laboratory Samples

Overview

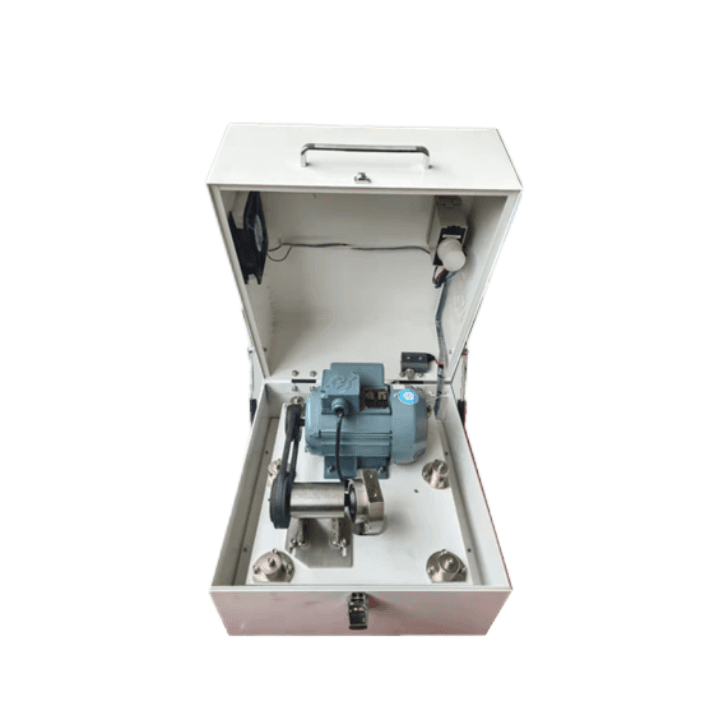

The VBM-80 High Speed Vibratory Ball Mill is a high performance, compact instrument for

the preparation of laboratory samples (small and micro quantities).

How it works

The instrument has a rotating oscillating and vibrating three-dimensional motion during grinding,

with a higher collision energy than other types of balls.

Advantages

The instrument is small, light, efficient and inexpensive

Scope of application

High speed vibratory ball mills are capable of ball milling or mixing various solids, suspensions and pastes

with different particle sizes and materials by both dry and wet methods, and can be used for grinding,

mixing and mechanical alloying of materials

Model

VBM-80

Specification

50ml,80ml

Technical specifications

Maximum charge per jar: one third of the volume of the ball mill jar

Feed size

<1mm

Discharge size

Down to 0.1μm

Oscillation frequency

1200 cycles/min

Timing range

0~9999 sec and normally open gear

Motor specification

Single phase 220V 180W

Motor frequency

50Hz

Dimension

405x365x260 (mm)

Features

The high speed vibrating ball mill has an eccentric pendulum shaft, which produces an eccentric swing

of the tank during the high speed operation of the motor; driving the whole support point frame to vibrate

up and down, making the grinding process complete in a three-dimensional space of high speed swing and

vibration. This greatly increases the speed and efficiency of grinding.

Ball Mill Tank Material Type

Pictures

80mL Stainless steel (1Cr18Ni9Ti)

50mL Agate jar

50mL Ceramic jar

50mL Nylon jar

50mL Polytetrafluoroethylene jar

50mL Zirconia jar

80mL Stainless steel vacuum jar

Stainless steel plain jacket

Vacuum stainless steel jar

Each jar comes standard with a grinding ball of

20 for Φ10mm ，4 for Φ20mm
