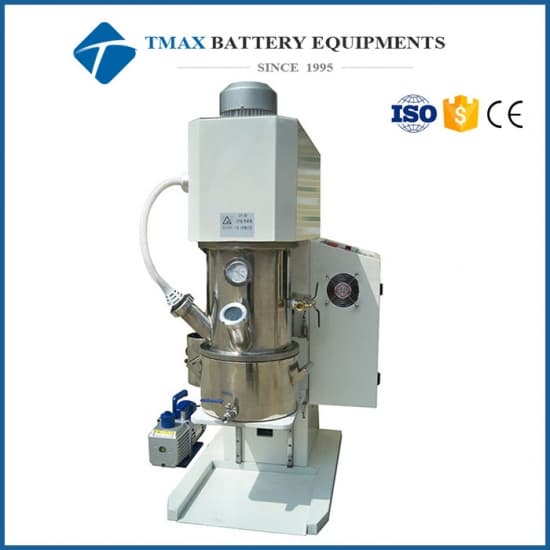

5L/30L/60L Planetary Vacuum Mixing Machine

Model Number:: TMAX-PVM-10L
Type:: Planetary Mixer Machine
Max. Loading Capacity:: 5L/30L/60L
Net Weight:: About 300kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

5L/30L/60L Planetary Vacuum Mixing Machine

SPECIFICATION

1 This TMAX-PVM-10L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc

2 This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed and torque according to different process, different
viscosity.

3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better
dispersion and uniformity.

Model	Planetary Vacuum Mixer TMAX-PVM-10L
Source voltage	AC 110V,220V,380V, 50HZ
Power	4500W
Warranty	One Year limited warranty with lifetime support
Rotation speed	0-1400 r/min, Through the inverter speed control
Revolution speed	0-70r/min
Effective volume	10L, 1-10 Liters Customized according request
Design volume	5L,30L,60L
Mixing barrel opening mode	Deceleration motor driven fill rises
Mixing barrel size	Φ310mm(Diameter)*200mm(Hight)
Mixing time set	0-99H can be set, auto stop when finish with vacuum
Weight	About 400kg
Dimension(HLW)	18001200800mm
Advantage	10 liters 304 stainless steel container with high accuracy Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours. Double Step Rotary Vane Vacuum Pump is included for immediate operation Programmable controller to set time, speed, rotation direction. With time setting function Double blade design, make the material up and down around, mixing battery paste rapidly
