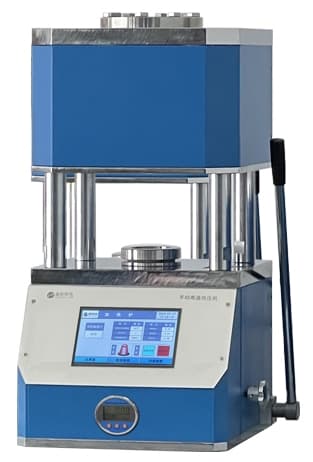

900C Small Tonnage Manual Hot Press

900C Small Tonnage Manual Hot Press



Setting interface

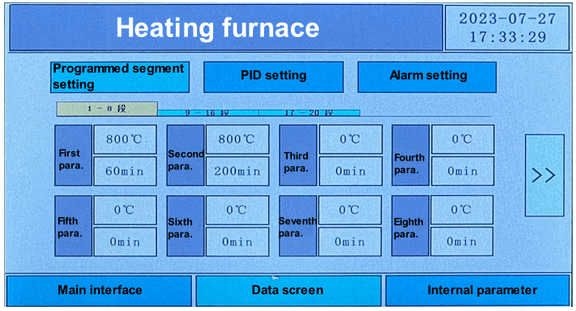

Step 1: Select the data screen and enter the Settings screen

Step 2: Select "Programmed Segment Settings"

Step 3: There are 20 temperature control procedures in the program, select the first paragraph

Step 4: According to the requirements of the experiment, set the temperature and heating speed of the first stage

Step 5: If you need multiple heating procedures, you can set up 20 procedures

Step 6: After setting, press the main screen to return to the operation screen

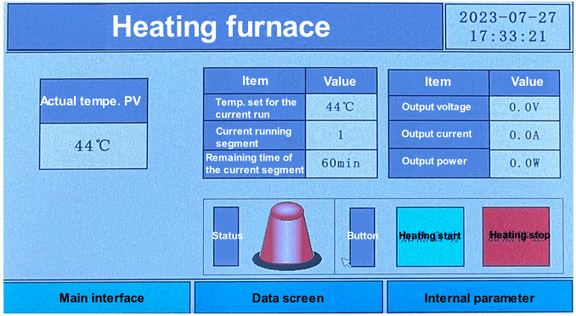

Operating interface



Step 7: On the main screen, press "Heating start"

Step 8: The device is programmed to heat up.

Step 9: Automatically stop the device after the end of heating. If the setting is wrong, for example, the set temperature is not reached within the specified time, the device will automatically terminate.

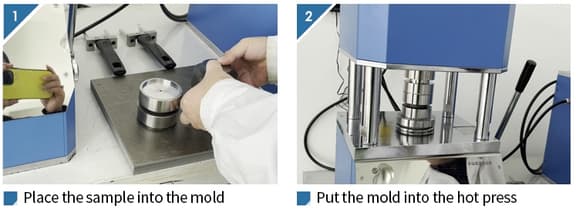

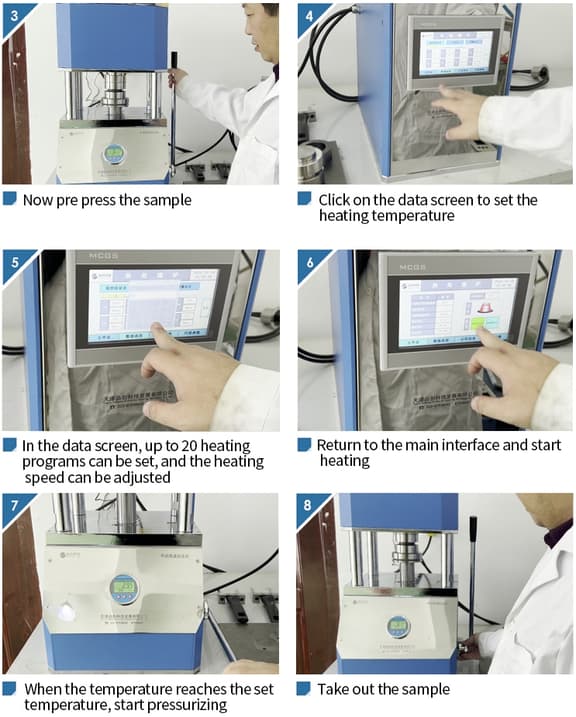

Operation procedure





Technical parameter
