Large 400mm Oil Pressure Control Roller Press Machine

Model Number:: TMAX-703B
Input Power:: 7.5KW
Dimension(L*W*H):: 2100*1150*1700mm
Net Weight:: 5T
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

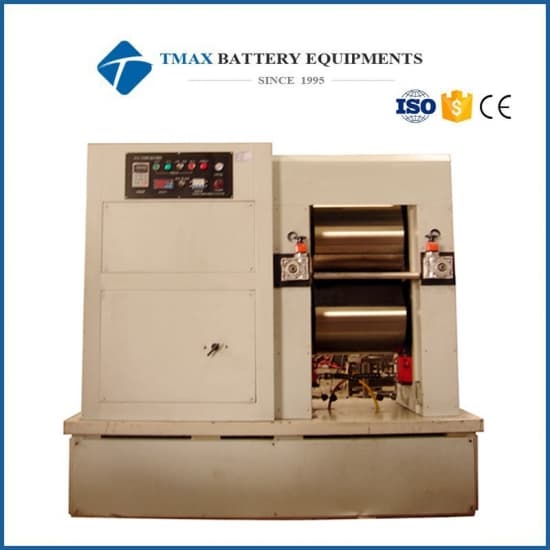

Large 400mm Oil Pressure Control Roller Press Machine

1 TMAX-703B system battery roll press machine is a high precision Oil pressure control roller press machine. It has dual rollers of 400mm dia.* 450mm width. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..

2 This model battery roll press machine is with 200T pressure, The operator adjust the press pressure to get best effect battery electrode density according to battery design.

Model	TMAX-703B
Type	Vertical 2 Roll Press type
Source voltage	380V/50Hz
Power	7.5KW
Warranty	One year limited warranty with lifetime support
Roller diameter	Die * width=400*450mm
Suitable electrode width	400mm
Speed	7r.p.m
Pressure	200T
Max rolling gap adjustment	0-2mm adjustable
Structure	1 Roll surface roughness, surface roughness of 0.4um 2 Roll hardness: HRC62-65, roll conditioning: HB280-300, 18mm or higher quenching depth and roll cylindricity less than 0.003 mm 3 Adopt p52 precision bearings 4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable
Dimension(LWH)	210011501700mm
Weight	About 5T
