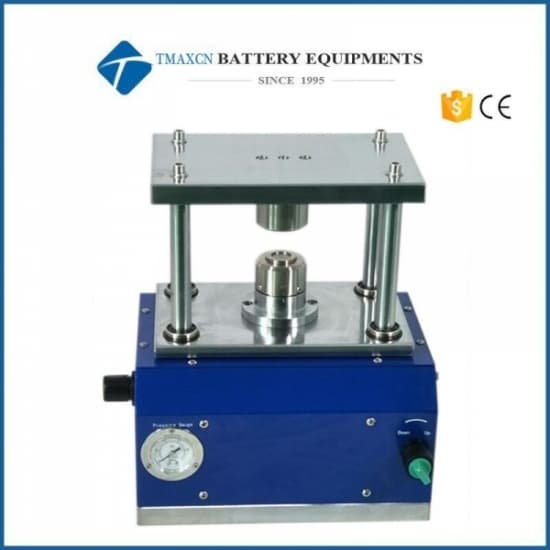

Manual Pneumatic Coin Cell Disassembling Machine

Model Number:: TMAX-Pneumatic1
Net Weight:: 25Kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

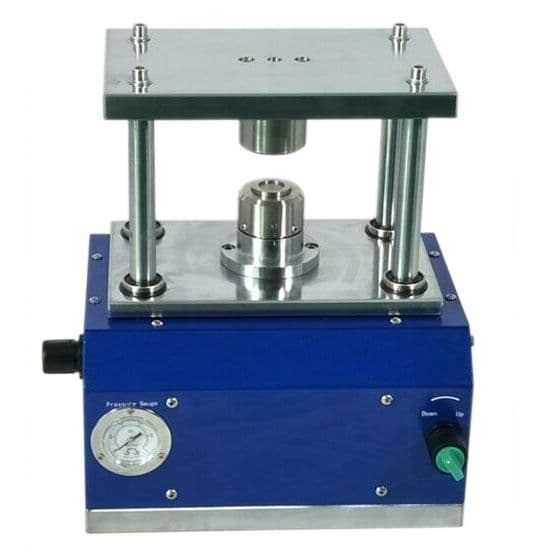

Manual Pneumatic Coin Cell Disassembling Machine

1. TMAX-Pneumatic1 is a newly designed coin-cell disassembling machine with lighter weight. It’s mainly used for coin cell battery material lab researching,

Capacitor disassembling research,also be used in small batch trial production in factories.

equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc.

2. In addition, customers can easily replace the original die for disassembling purpose.

3. It can also be worked in glove box with smaller volume.

Specifications

Machine Model	Pneumatic Coin Cell Disassembling Machine TMAX-Pneumatic1
Gas source	0.6 0. 8mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)
Exhaust design	Specially designed exhaust port, can external via connected by kf40 and other devices
Gas consumption	The gas consumption of single disassemble is about 480 ml
Disassembling pressure	Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%
Disassembing stroke	30mm
Crimping die	Standard crimping die is CR20xx, with optional die sets
Disassembling die	Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.
Machine size	L290mmW205mmH330mm
N.W	25Kg
Structural material	High strength chromium steel, the surface after environmental plating and spray treatment will never rust.
Remark	With the function of preventing short circuit of battery crimping
