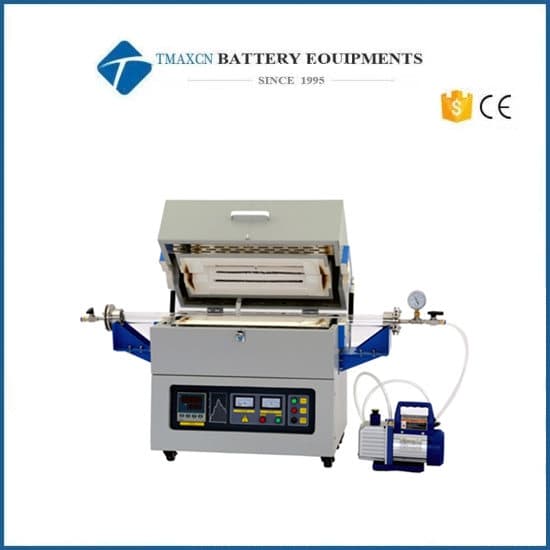

One-Zone 1200°C 60-250mm OD Split Tube Furnaces w/ Kanthal® (Sweden) Elements

Model Number:: TMAX-1200Cfurnace
Dimension(L*W*H):: 60-250mm OD (Size can be customized)
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

One-Zone 1200°C 60-250mm OD Split Tube Furnaces w/ Kanthal® (Sweden) Elements

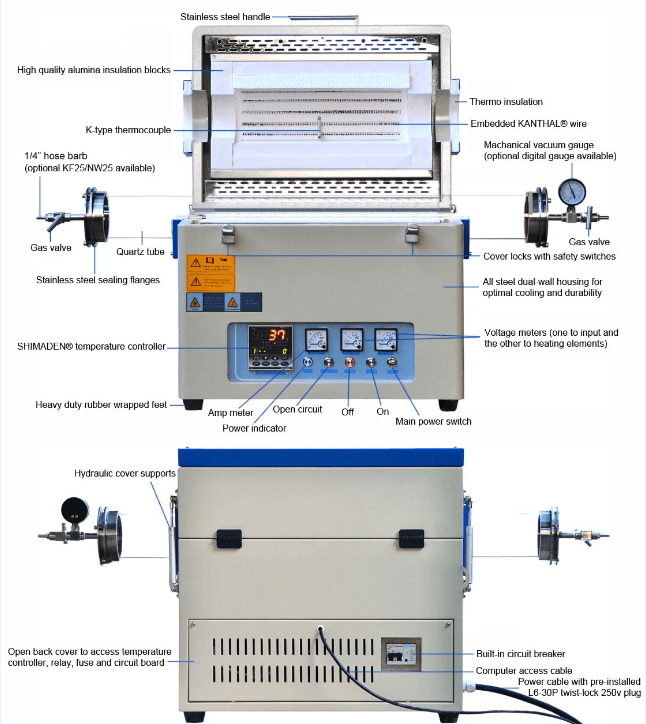

TMAX-1200Cfurnace series split tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

All our furnaces have got CE certificate

Features

·
Compact, portable and lightweight design.

·
Split furnace chamber for fast and easy tube access.

·
Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

·
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

·
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

·
Built-in computer interface.

·
Long life type K thermocouple.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

General specifications

Electrical requirements	208-240VAC or 110VAC 50/60 Hz, single phase
Tube material	Quartz
Maximum working temperature	1200°C
Maximum constant working temperature	1100°C
Constant working temperature under vacuum	1000°C
Minimum working temperature	Ambient
Rated vacuum pressure	0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure	0.02 MPa / 150 torr / 3 psi
Heating element type	Kanthal (Sweden) resistance coil wire
Thermocouple type	K
Refractory lining	Mitsubishi (Japan) high quality 1500 grade fiber alumina
Temperature controller	Shimaden (Japan) fp93 (made in Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments).
Maximum heating & cooling rate	< 30°C / min
Heating zone length	16 inches
Constant temperature zone length	10 inches
Temperature controller precision	+/- 1°C
Vacuum sealing flange kit	Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
Gas inlet/outlet	1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
CE certificate	Yes

Size comparison

Tube size (OD x length)	60mm x 1m	80mm x 1m	100mm x 1m	120mm x 1m	150mm x 1m	200mm x 1m	250mm x 1m
Maximum output	2.5 kW	3.5 kW	3.5 kW	4 kW	5 kW	6 kW	8 kW
Furnace dimensions (LxWxH)	24x15x20"	24x18x23"	24x17x23"	24x17x23"	24x18x24"	26x21x28"	26x21x28"
Shipping dimensions (LxWxH)	48x25x36"	46x25x36"	46x21x36"	46x21x36"	46x22x37"	50x28x40"	50x28x40"
Shipping weight (Lb)	290	350	370	400	450	500	650

Standard Package

Part description	Quantity	Part image
split tube furnace	1 set
Quartz tube 1000mm length 60-120mm OD: 2 pcs, 150mm/200mm OD: 1 pc	2 pcs
Stainless steel vacuum sealing flanges w/ pressure gauge	1set
Analog flow meter	1 pc
Stainless steel hook	1 pc
Alumina thermal block (for 120mm OD and down) Quartz thermal block (for 150mm OD and up) to protect flanges sealing gaskets from heat damage	2 pairs
Thermal gloves	1 pair
Spare fuse	2 pcs
USB/RS485 computer interface kit	1 set
L6-30P 250 volt twist-lock plug (No plug installed for 250mm OD, only power cable)	Pre-installed
Furnace and Shimaden controller manual	2 pcs
