Pneumatic Electrode Die Cutter Cutting Notching Machine with A Pair Die for Pouch Cell Research - MSK-180S

Model Number:: MSK-180S
Type:: Pneumatic Die Cutter
Dimension(L*W*H):: Max.300mm(L) x 250mm(W)
Net Weight:: 32kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Pneumatic Electrode Die Cutter Cutting Notching Machine with A Pair Die for Pouch Cell Research - MSK-180S

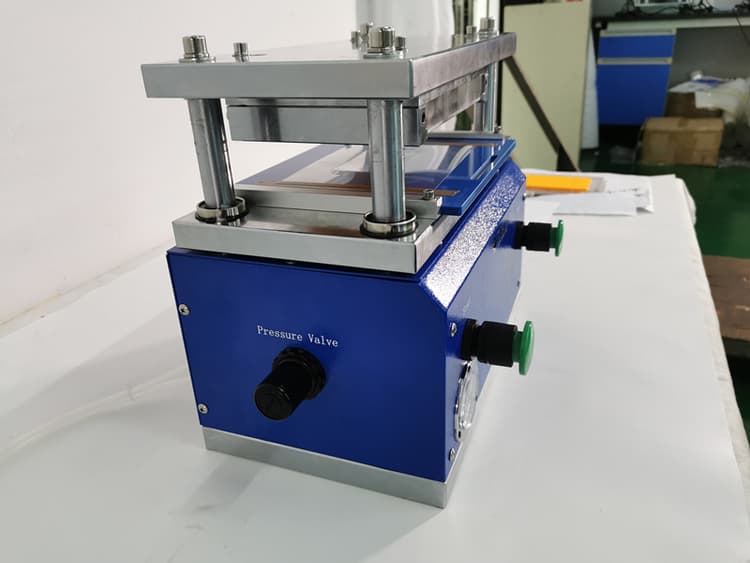

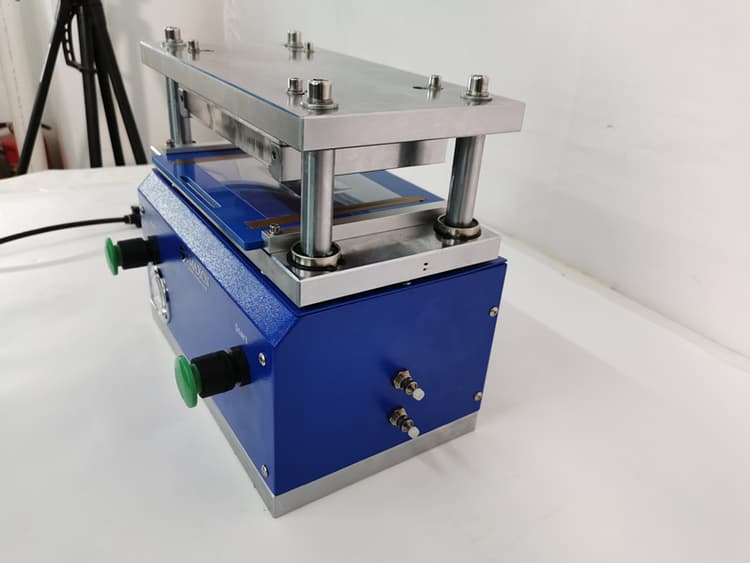

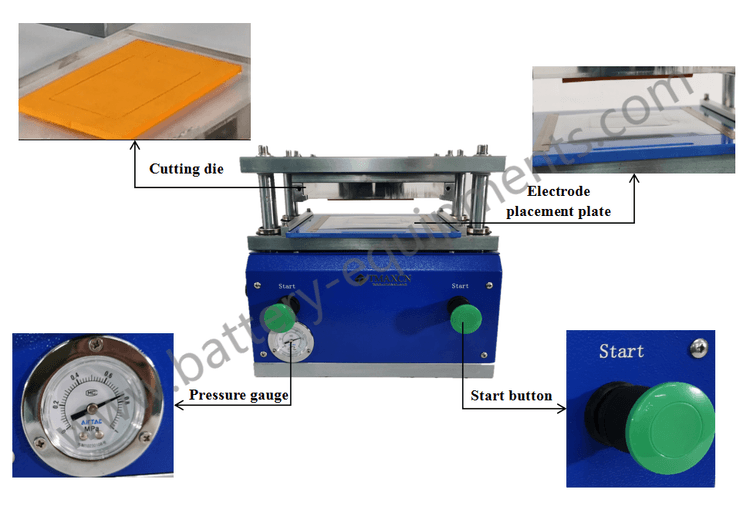

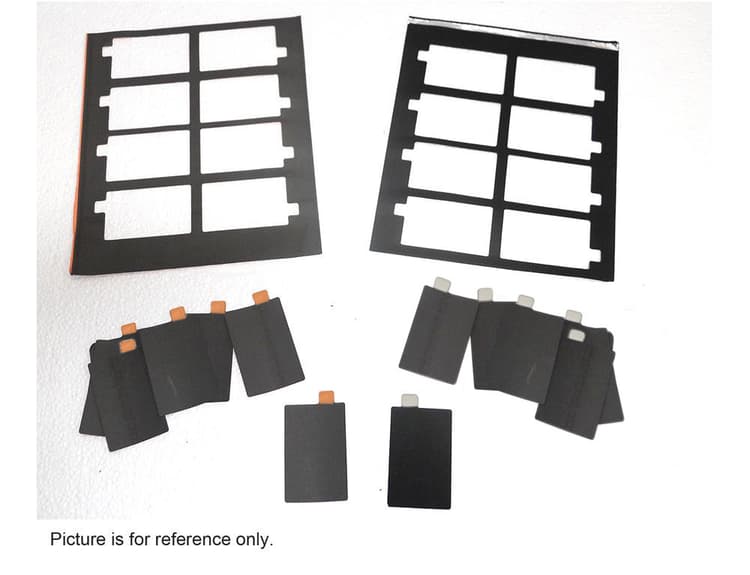

TMAX-180S is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut

SPECIFICATIONS:

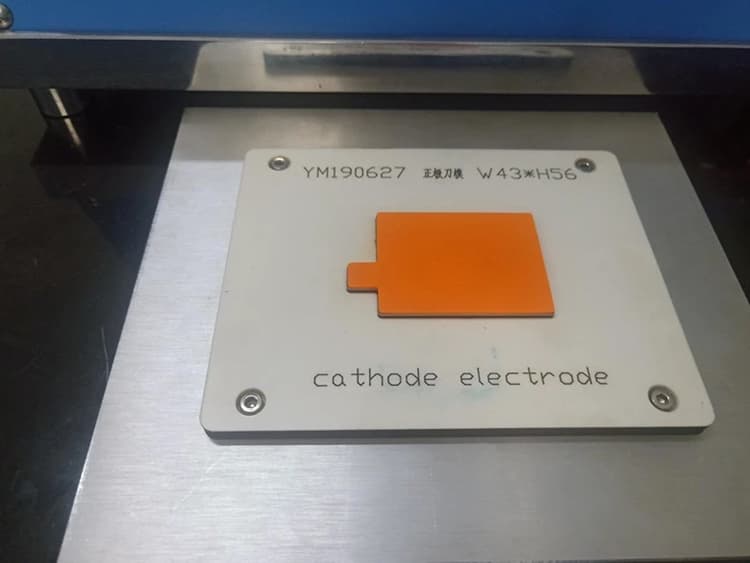

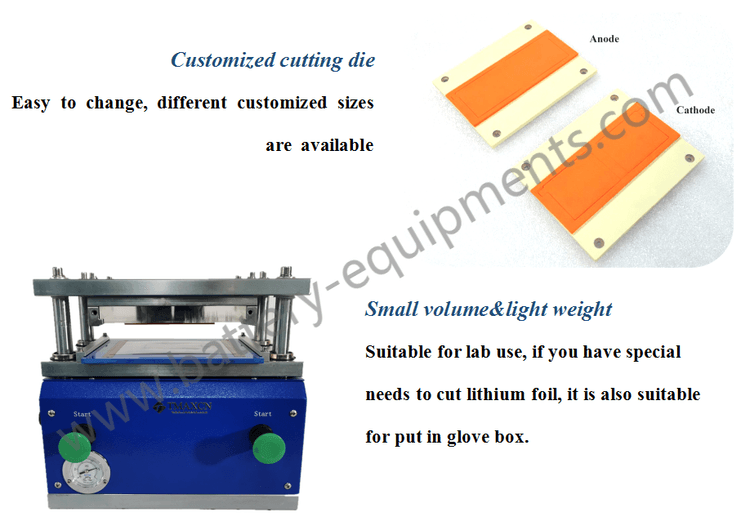

Die Set Dimensions	The die size can be customized according to customer's actual needs
Cutting Depth	Max. 0.5mm (tested with aluminum laminated film)
Cutting Accuracy	±0.1mm
Cutting Pressure Force	Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)
Gas Pressure	· 0.5~1.0Mpa (0.7Mpa is recommended) o For the use of inside the glove box, please use compressed inert gas such as Ar. o For the use of outside the glove box, you may use the air compressor, 60 psi recommended. · Compressor is not included, please contact the sales manager for further quote · Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Feeding	Manually
Stroke Length	12mm
Cutting Die Life Span	~30000 strokes
Compliance	· CE Certified · No UL required because no electricity
Warranty	One Year limited warranty with lifetime support
Product Dimensions	370mm(L) x 250mm(W) x 245mm(H)

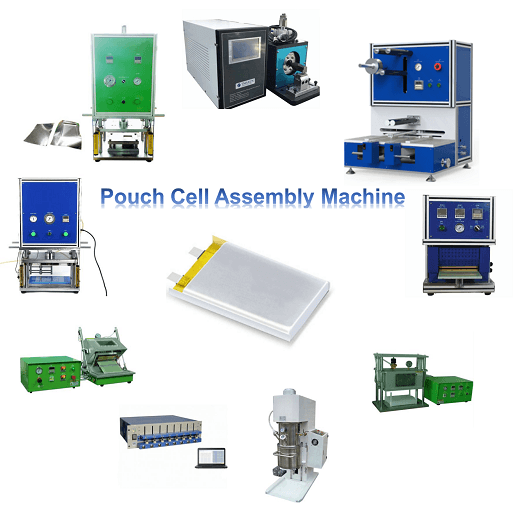

Optional	· You may order pouch cell case forming machine by click picture below right · We can also provide sealing machines for making pouch cells.
Net Weight	32kg
