Roll To Roll System Pressure Controlled Heat Calender Rolling Press Machine

Model Number:: TMAX-MSK-E2300B
Dimension(L*W*H):: Diameter 100/200/300
Net Weight:: 150kg
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Roll To Roll System Pressure Controlled Heat Calender Rolling Press Machine

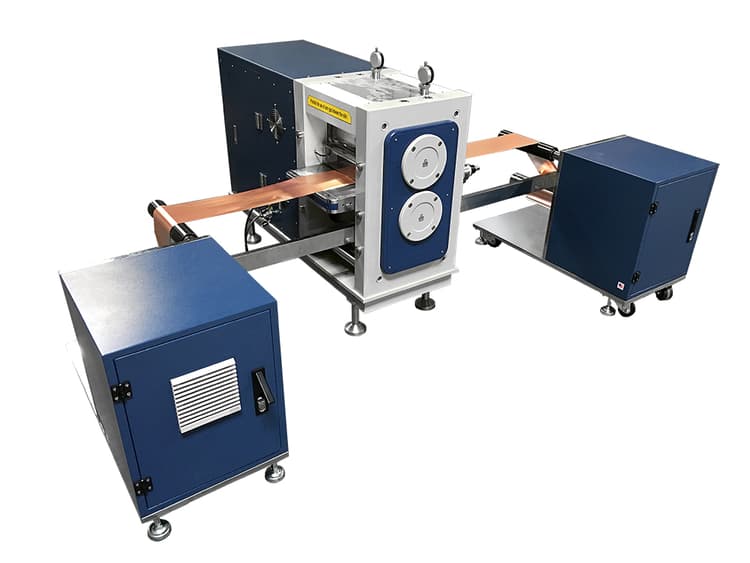

TMAX-MSK-E2300B is an Automatic Battery Electrode Rolling Press System with precision digital pressure control in a compact footprint that is less than 6'x6'.

It integrates tension controlled feeding and winding devices together with Pressure Controlled Electric Rolling Machine to achieve attention-free electrode rolling & pressing up to 80 meters long with the 270mm max width. It is a perfect tool for building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries to prepare electrode sheets at consistent and repeatable rolling conditions.

SPECIFICATIONS:

Working Voltage	108 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included
Max. Power Consumption	2.5kW

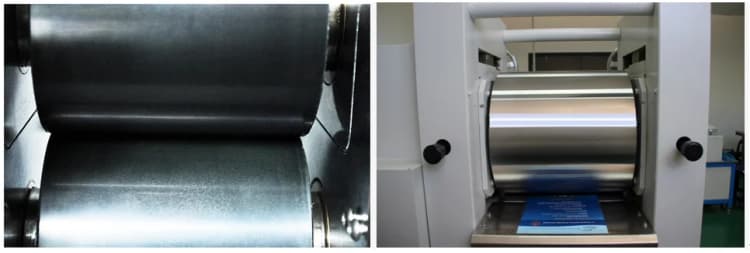

Rollers (one pair)	Dimensions: 200mm (Dia.) x 300mm(W) Material: Hardening Toll Steel with HRC 60-62 Effective Rolling Width: <270mm
Press gap	0.050 -1 mm adjustable by Dual micrometer knobs Tolerance: 0.003mm
Motor & Rolling Speed	550W AC motor with frequency controller 1 - 6 Meter /Minute adjustable by Touch Screen Control Panel

Press Planeness	±0.0025mm
Pressure Control	Pressure load: 1 - 25 Tons adjustable by Touch Screen Control Panel Real time pressure displays with data recording function
Rectifying Sensor	Built in Rectifying Sensor to ensure neatly reeling electrode foil after pressing
Compressed air	60psi required (Air compressor is not included. )
Rolling Unit Dimensions	Rolling Machine: 1200mm(L) x450mm(W) x 800mm(H) The system with feeding & winding:
Warranty	Two years limited warranty with lifetime support
Net Weight	150 kg
Shipping Weight & Dimensions	Two Pallets 60"x50"x50" 50"x40"x60"
