Coin Cell Case With Two Sides Kapton Windows
- Model Number:
- TMAX-CCC1
- Type:
- Coin Cell Case
- Dimension(L*W*H):
- CR 2016 2025 2032 2450 2045
- Compliance:
- CE certificate
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description

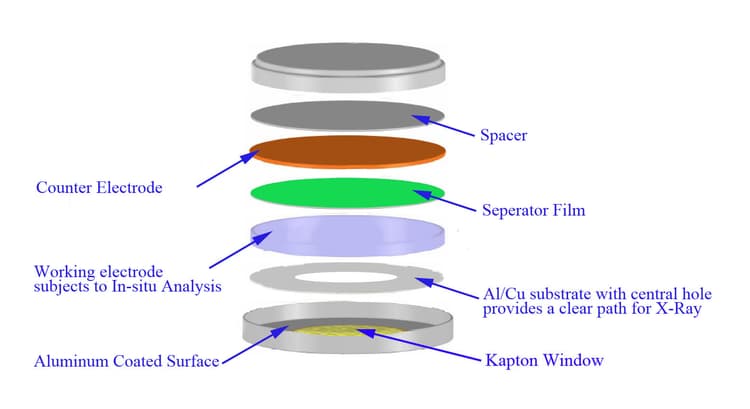

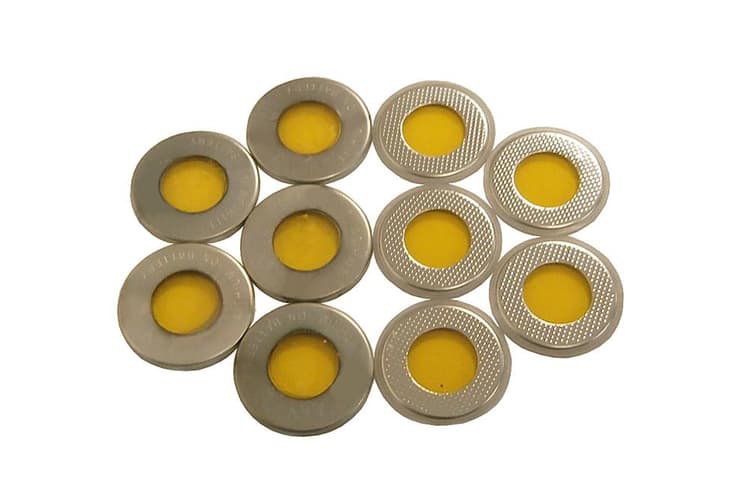

Coin Cell Case With Two Sides Kapton Windows
|
Dimensions (Dia x Height) |
20mm x 1.6mm Or customized |
|
Kapton window thickness |
0.18mm |
|
Coating |
The positive side of casing is coated with aluminum |
|
Al coating thickness |
< 0.01mm |
|
Weight |
0.25 Oz (7 grams) |
|
Application note |
· In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray. |
