Electric 4" (100mm) Width Lab Roller Pressing Calender Machine with Dual Micrometer

Model Number:: TMAX-DG
Dimension(L*W*H):: Diameter 100/200
Net Weight:: 55kg(180lbs)
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Electric 4" (100mm) Width Lab Roller Pressing Calender Machine with Dual Micrometer

Heat press machine

1.Electric rolling press calendar machine for
lab R&D
2.Easy to operate
3.Roll Width:0-100mm width

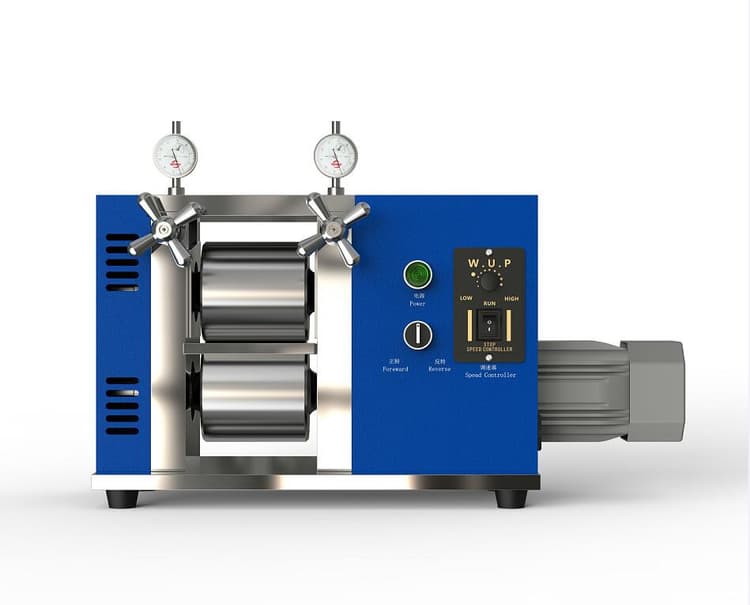

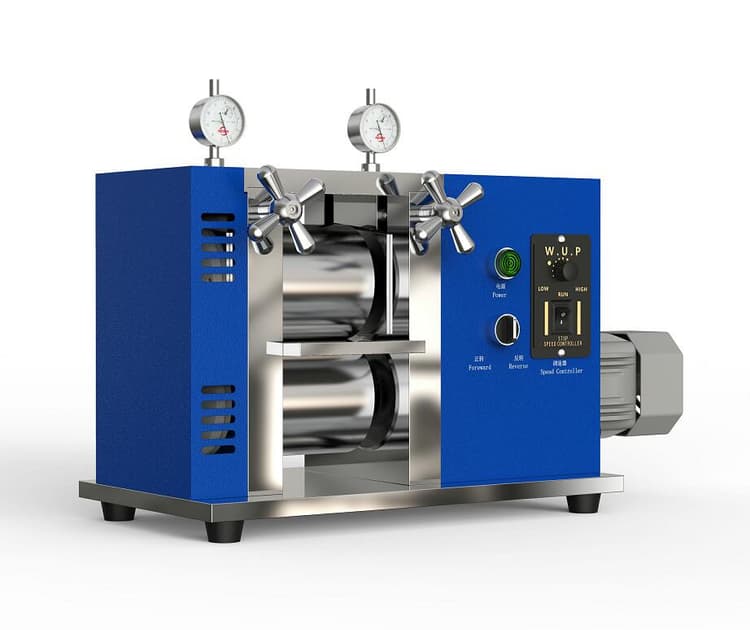

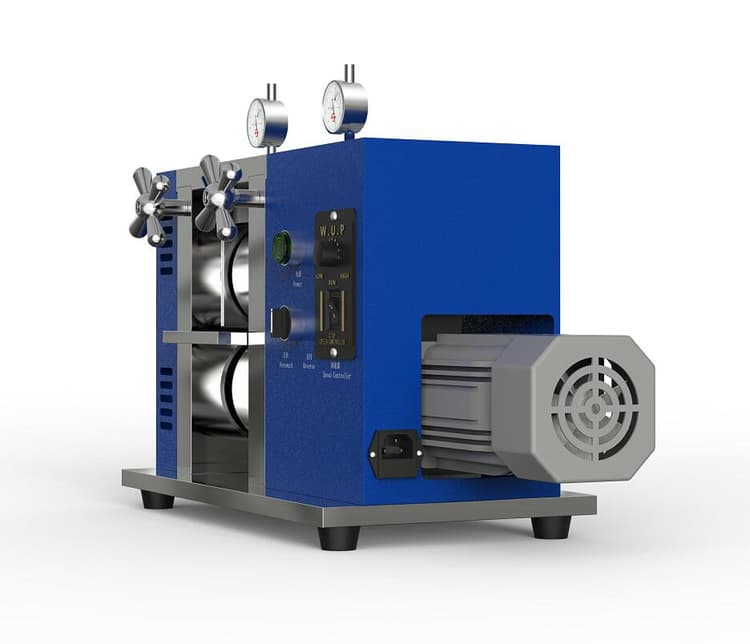

TMAX-DG Electric Rolling Press Machine. It has dual rollers of 96
mm dia. x 100mm width and dual grade micrometer. This lab roll press
machine is an ideal rolling press for adjusting thickness and increasing
active material density of the electrode in Li-Ion batteries research after
coating and drying. Also,this Electric Rolling press machine is
mainly used in the laboratory lithium battery materials, small amount of
precious metals such as gold and silver materials, copper, aluminum and other
non-ferrous metal materials manually suppressed.

Model	TMAX-DG
Voltage	220V/110V selectable
Effective Calendering Width	100-400mm selectable
Roller Size Optional	100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width
Hardness of roll surface	HRC62, imported 9CR2MO steel roll material
Gap distance (rolling thickness)	0~2 mm adjustable

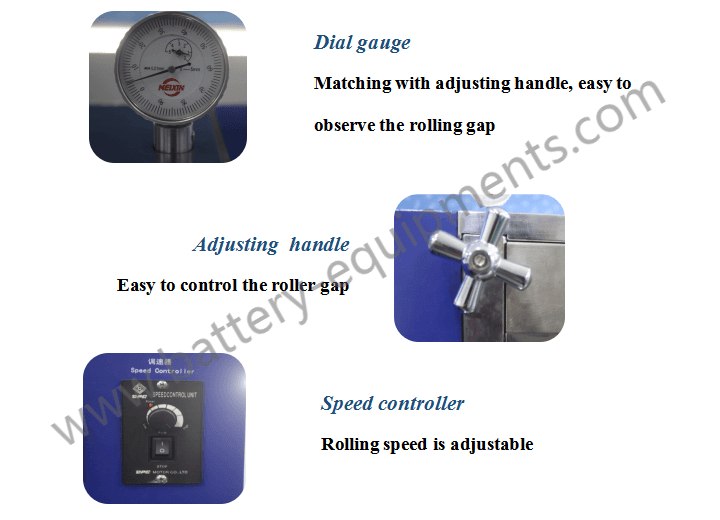

Dial Gauge Accuracy	0.01mm
Rolling Speed	0～40mm/s adjustable
Roller Surface Finish Degree	Hard chromium plating never rusts
Roll surface quenching depth	5mm
Max. Pressure	3Ton
Operation environment	Ar gas compatible
Roller finish	Above 0.4
Standard configuration	1 set of hexagon wrench 2 dial gauges 1 feeler gauge
