Lab Electrode Die Cutter for Solid State Battery Production

Model Number:: TMAX-MQ300
Type:: Electrode Die Cutter
Dimension(L*W*H):: Max.300mm(L) x 250mm(W)
Net Weight:: 120kg (265 lbs)
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

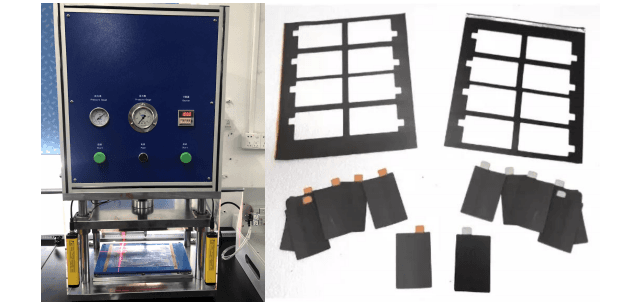

Lab Electrode Die Cutter for Solid State Battery Production

TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

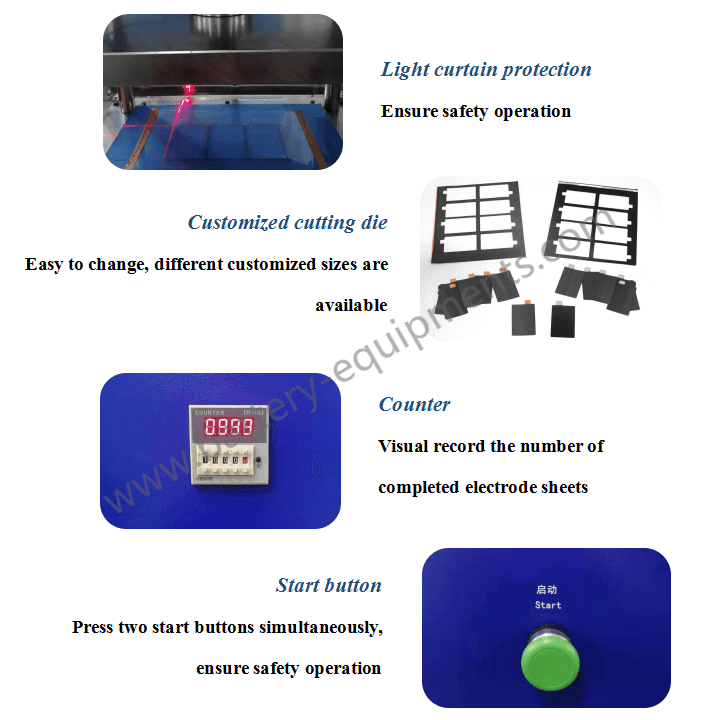

This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

High speed, high accuracy,long lifetime to make cut electrode without burr, to get a good consistency.

Specifications

Model	Battery Electrode Die Cutter Machine TMAX-MQ300
Work voltage	AC110V/220V, 50/60HZ
Power	100W
Warranty	One year limited warranty with lifetime support
Cutting Die	Customized according to customer's request
Safety Protection	Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button
Cutting Accuracy	±0.1mm
Air Cylinder	5 tons Max. pressure
Tensile Cylinder	0.15 tons pressure
Cutting stroke	250mm
Feeding	Manually
Yield	800 - 2000 pieces of electrodes per hour
Air Pressure	0.5-0.8Mpa
Dimension (LWH)	580455 900mm
Net Weight	120kg (265 lbs)
Shipping Dimensions	4775109cm
Recommendation	For the pouch cell assembly, we also recommend you the following items: Forming machine Hot sealer with tab Vacuuming sealer Ultrasonic tab welder Stacking machine Aluminum Laminated Film
