1600°C 16x12x12" 40-Segment Muffle Furnace w/ PC Interface

1600°C 16x12x12" 40-Segment Muffle Furnace w/ PC Interface

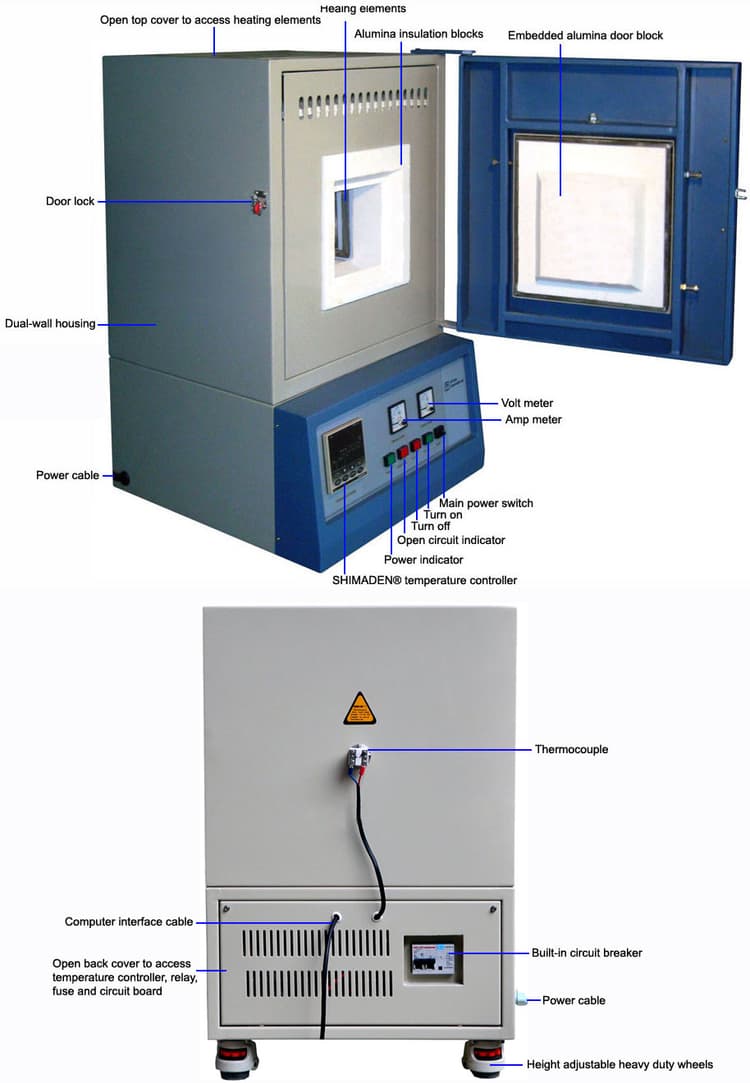

TMAX-1600Muffle series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

·
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

·
Built-in computer interface.

·
Long life type B thermocouple.

·
CE compliant

Safety

·   Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

·   Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

General specifications

Detail specifications

Standard package
