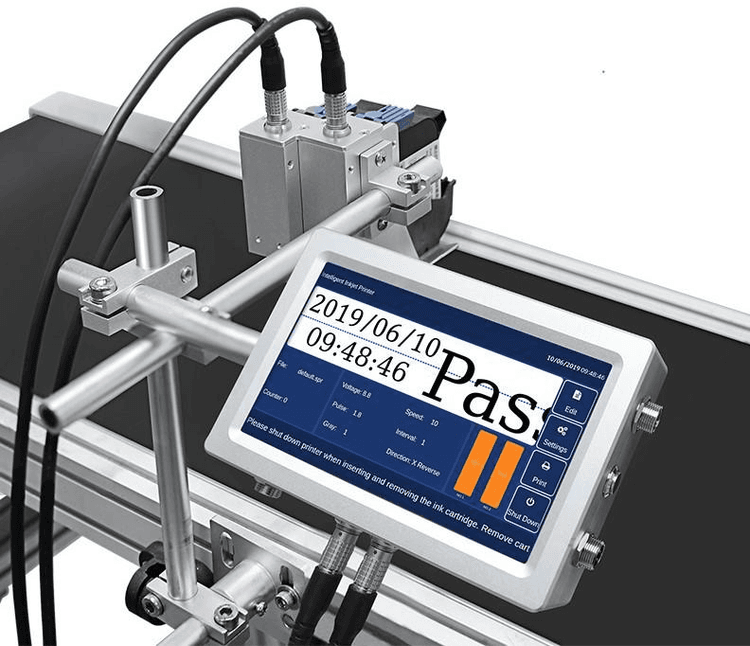

Ink Jet Printer Printing Machine

Model

MX2

Nozzle

TIJ 2.5 Thermal foaming nozzle

Operating system

Linux

CPU

Quad core 1.4Hz

DPI

600 maximum

Screen size

5 inch

Language

English, Chinese, Turkish, Arabic, Korean, Italian

Shape features

Aluminum alloy

Dimension

Controller: 130*100*42mm, Print head: 90*110*107mm

Net weight

Controller: 0.5KG, Print head: 0.5KG

Printing height

12.7*2mm

Printing distance

2-5mm

Print content

Text, time, batch number, serial number, logo, QR code, barcode

Storage

the system can store more than 1000 message (external USB

make the information transfer in a free way)

Printing length

2000 characters for each message, no limitation on length

Printing speed

70m/min

External interface

USB, Photoelectric interface, RS232

Power consumption

30 W

Voltage

220V±20% AC input, 16.8V/2A DC output

Working environment

Temperature:0 - 45℃（best 20-30℃）; Humidity: 40% - 60% Rh

Printing material

board, carton, stone, pipe, cable, metal, plastic product, electronic,the fiber board, light steel keel, aluminum foil, etc.
