Lab 10 - 800 mm Adjustable Electrode Film Coating Machine for Cylindrical Cell Research with Dryer

Product Description

The TMAX-VFC-150B Film coating machine with dryer is used for varies kinds of materials coating.

It is supplied with vacuum pump and heating system, having an precision heating temperature up to 200°C.

The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

Machine model	Film Coating Machine TMAX-VFC-150B
Source voltage	AC110V-240V, 50/60HZ
Power	680W
Coating speed	0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages	Supply with dry function, vacuum pump
Stroke length	10 - 800 mm adjustable by using Adjustable Position Switch

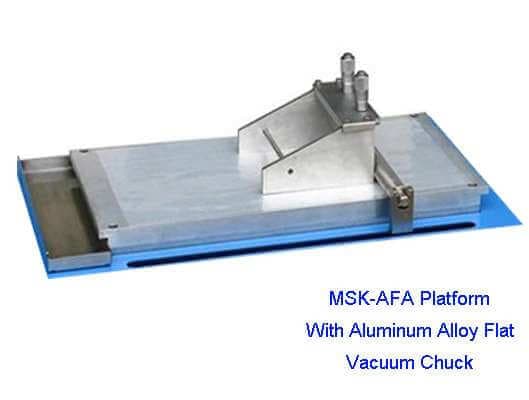

Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 368mm(L) * 200mm(W)*30mm(T)
Slicker width	0-150mm
Slicker adjustable range	0.01-3.6mm
Heating dry system	RT-200°C, Digital temperature controller
Temperature control accuracy	±1.5°C

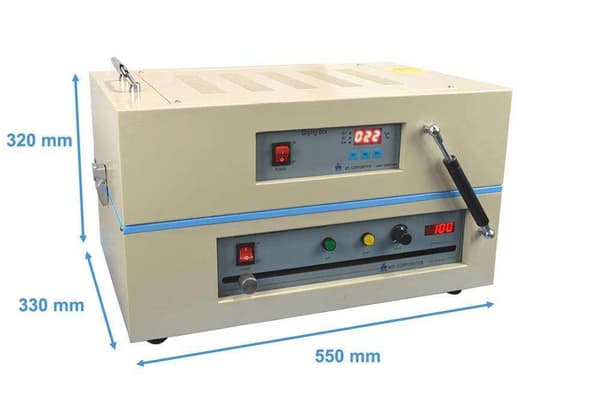

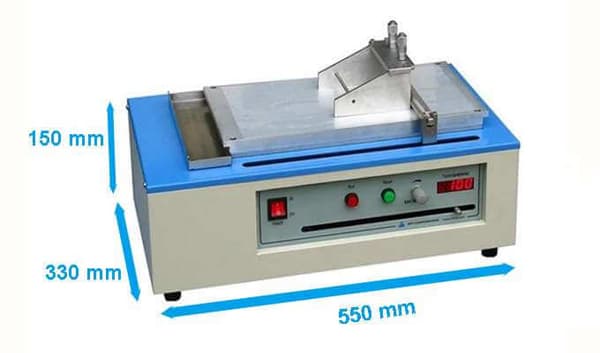

Dimension	550330340mm
Weight	About 68kg
Warranty	Two Year limited warranty with lifetime support

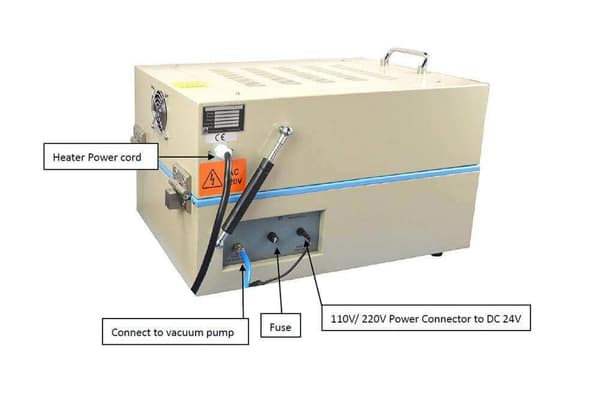

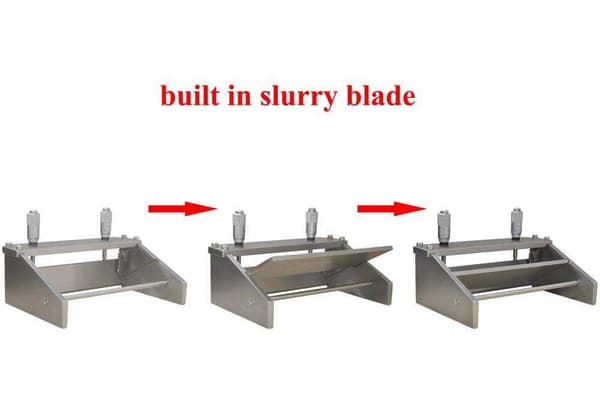

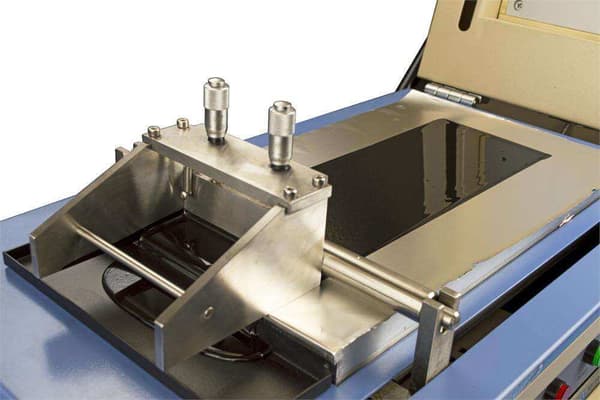

Reference Pictures	1 One oil-less vacuum pump is included for immediate use 2 Heating system : Installed on the top cover Built in digital temperature controller with accuracy of +/-1°C Suspension support helps open cover easily and safely. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3 One 150mm width micrometer adjustable film applicator is included Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
