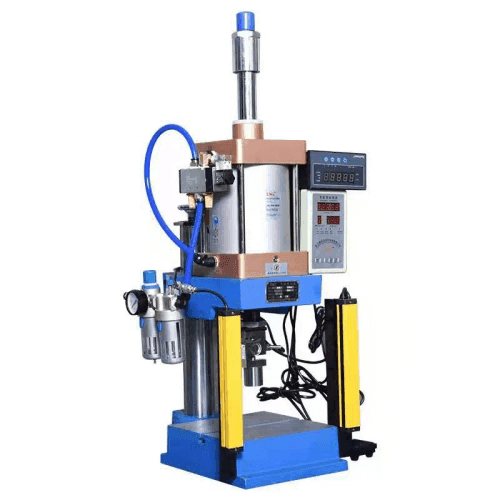

Laboratory Manual Steel Ball Sealing Sealer Machine For Prismatic Cell Crimping

1、 Equipment Overview

1. Equipment name: Manual sealing machine.

2. Equipment model: TMAX-FK-120.

3. Equipment usage: Suitable for aluminum shells, steel ball sealing after cylindrical liquid injection(φ 1-4mm).

4. Production efficiency: 3-5 PPM (worker proficiency).

5. Scope of application: 200 × 200 × 250mm (length × wide × High).

6. Equipment size: approximately 800 × 600 × 1000mm (length × wide × High).

7. Equipment reference weight: approximately 80Kg.

8. Equipment utilization rate:>95%.

9. Equipment color: computer white or customer specified.

2、 Process flow

1) Manually place the battery cell into the sealing machine positioning fixture

2) Artificial vacuum tank suction nozzle suction steel ball placement sealing position

3) Core pressing machine pre pressing sealing

4) Manual material retrieval, cyclic operation

3、 Equipment parameters

4、 Equipment Function and Description

1. The sealing cylinder adopts φ 100mm adjustable cylinder:

2. Mechanical limit setting for sealing height

3. Manual transmission of power cells, manual transmission of steel balls,

4. Replace the sealing mold according to the size of the steel ball.

5. Suitable for aluminum shell battery cell steel ball sealing, cylindrical battery cell steel ball sealing.

5、 Common component brands

6、 Installation environment requirements

1. Equipment size: approximately 800 × six hundred × 1900mm long × wide × High).

2. Compressed air: After drying, filtering, and stabilizing, the outlet pressure is greater than 5.0-7.0kgf/cm ² (i.e. 0.5~0.7Mpa).

3. Power supply: AC220V/380V/50Hz
