Large Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Battery
- Model Number:
- TMAX-pouchforming
- Compliance:
- CE compliant
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description

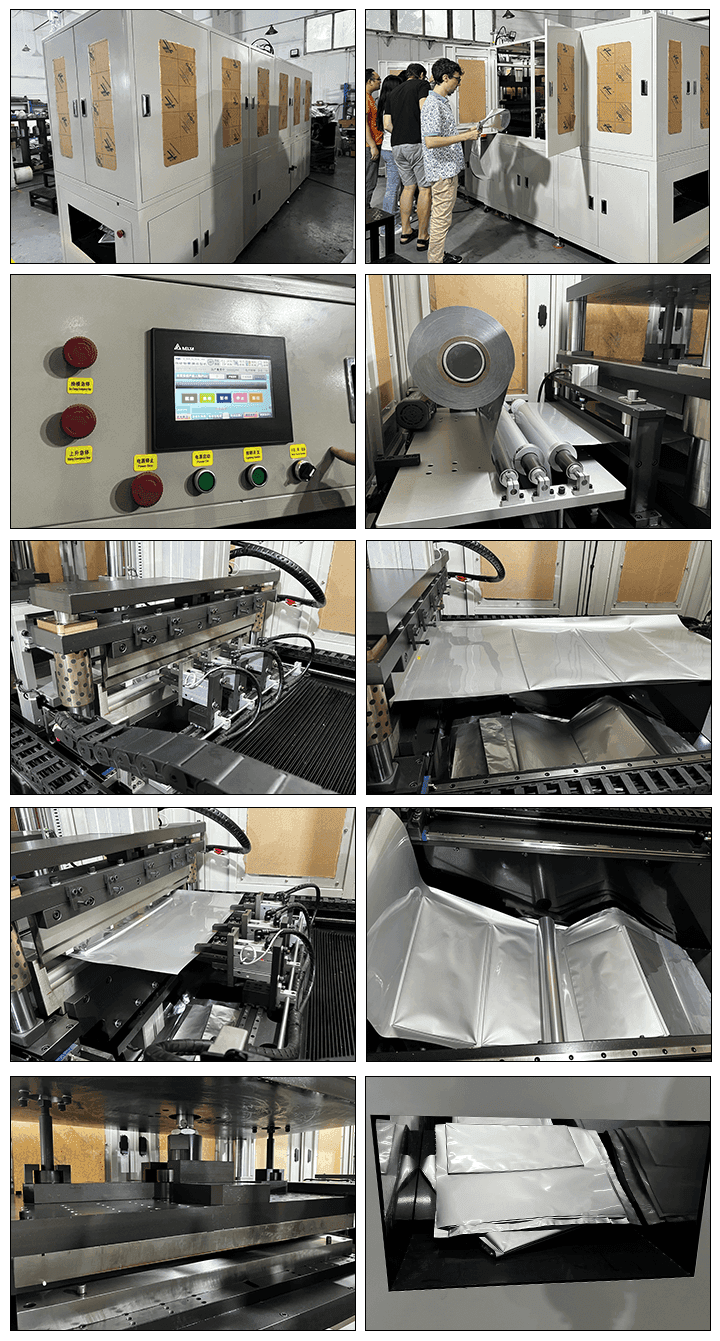

Large Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Battery
|
Main technical parameters |
TMAX-AP001 |
TMAX-AP002 |
|
Size(L*W*H) |
700*2250*1860mm |
1000*3800*1900mm |
|
Weight |
870kg |
1200kg |
|
Applicable aluminum-plastic film area |
Max:380*200mm |
Max:600*350mm |
|
Thickness of aluminum film |
0.11-0.2mm |
0.11-0.2mm |
|
Depth of stamping pit |
Single pit<6mm |
Single pit<6mm |
|
Speed of stamping shell |
200-450pcs/H |
100-240pcs/H |
|
Cylinder pressure |
10T |
30T |
|
Stamping mode |
Air cylinder |
Servo |
|
Power source |
AC220V 0.5KW |
AC220V 3.8KW |
|
Gas supply |
0.6-0.7Mpa 40L/S |
0.6-0.7Mpa 40L/S |
