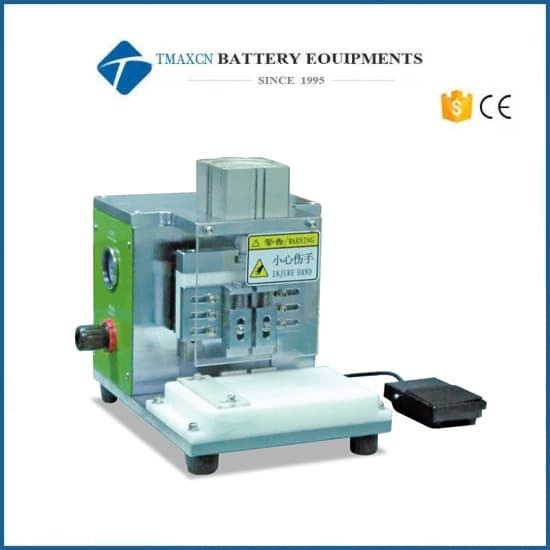

Lithuim Battery Tabs Shaping Machine for Pouch Cell Making

Lithuim Battery Tabs Shaping Machine for Pouch Cell Making

Introduction

It is mainly used for flat pressing and shaping after cutting the tabs of laminated cells.

Main features

*Shangyin linear slide rail group is used for guiding, and the guiding accuracy is extremely high to ensure that the upper and lower die are flat;

*Simple operation, high efficiency, stable temperature and good consistency.

*Using fixtures to assist the feeding, the cylinder drives the mold to achieve shaping.

*Set a product positioning tray to facilitate the positioning and placement of batteries;

*Beautiful, reliable, convenient and fast;

*The speed of the upper and lower platens and the shaping time can be adjusted and set.

Instruction

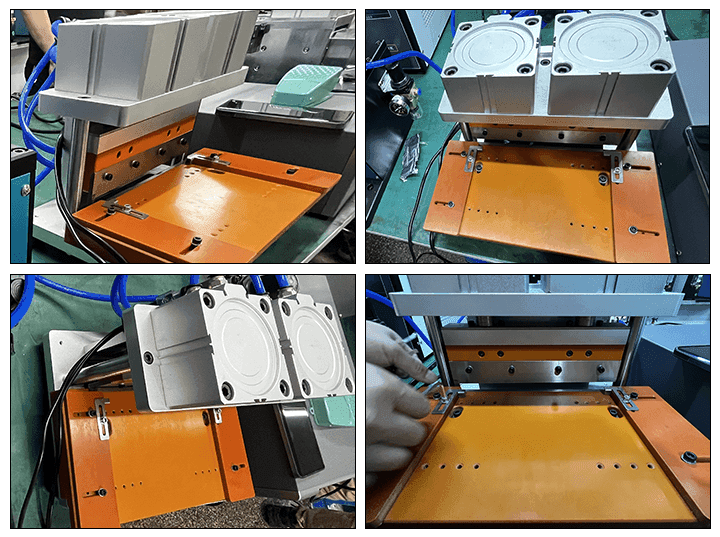

Put the product into the jig to be shaped, press the upper pressure plate (heating) of the foot switch and move it down to flatten the shape. After the pressure is maintained, the foot switch is released, the upper pressure plate is withdrawn, and the cell lugs are flattened.

Technical parameter
