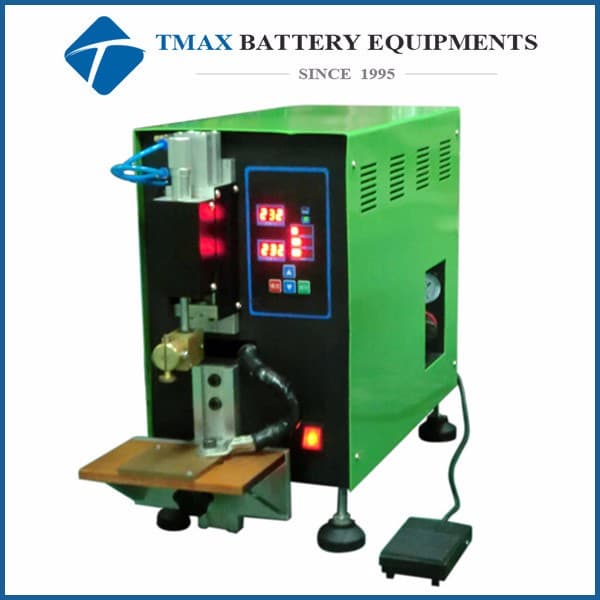

Single Point Pneumatic Welding Machine

Single Point Pneumatic Welding Machine

The
direct-current type spot welder is Our company promotes most newly specially
for the high-end spot welding design spot welder, it is Our company since long
technology crystallization, designs according to the present overseas most
advanced spot welder's principle. Uses the microcomputer monolithic integrated
circuit control and the alternating and direct contravariant technology, the
performance achieves the resistance welding the apex level. The product is in
the lead the domestic colleague level, with the overseas technical
synchronization, definitely may substitute for the foreign product, looks like
Japanese SEIWA, AVIO, MIYACHI, American UNITEK spot welder serial products and
so on.

Main Technical Data

1,      Input
voltage:                AC
220V±10% 50HZ±5%HZ

2,      Output
power                 12KVA

3,      the
welding current
:       00~99
adjusted

4,      Welding
time:                 00~99
adjustable

5,      Welding
lenth                 25mm, wending hight is adjustable

6,      The size
for machine( L×W×H):400×370×220mm

7,      Application:                    0.03 mm~0.5 mm metal sheet
