Vacuum Dryer Glue Film Drying Device For Perovskite Solar Cell Assembly Line

Product Description

Key Features：

1. Include pass nitrogen function, vacuum function and set the jacking range function.

2. Jacking range 0-30mm, automatic positioning.

3. 10 segments of N groups of formulas can be set, the formulas can be exported, and the mouse and keyboard can be connected externally.

4. Global service network, simple and practical, solving practical problems, San Diego, USA, Hong Kong, China service center.

5. Designed by the American Setcas team and assembled in China, it is cost-effective.

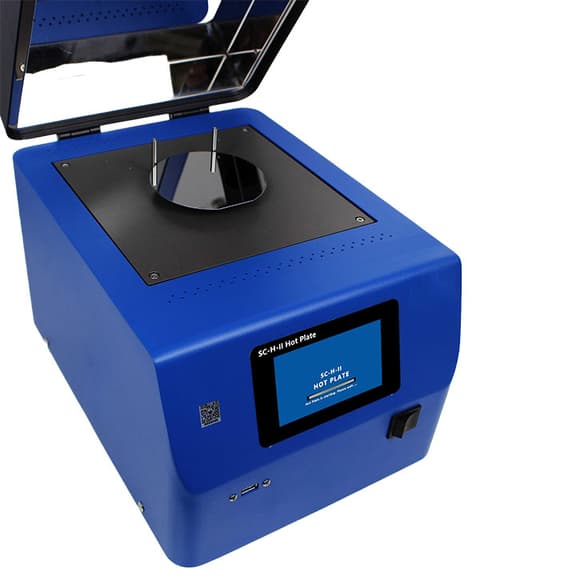

Hot Plate Specifications （SC-H-II）

Brand	TMAXCN
Origin	R&D by American team, production and assembly in Beijing
Product Features	Can pass nitrogen, can be evacuated, and can set jacking range
Jacking range	0-30mm Can be positioned arbitrarily
Indoor temperature	450 degrees, temperature can be continuelly adjust
Formula	10 segments, N groups of formula
Peripherals	The formula can be exported, and the mouse and keyboard can be connected externally
Constant temperature fluctuation	±0.5 ℃
Temperature uniformity	±0.5 ℃（ Temperature uniformity everywhere on the worktable at the highest temperature）
Nitrogen pressure	0.2-0.8MPA
Hot plate dimension	200X200mm(8 inch)
Product dimension	270(W)×379(D)×271(H)mm
Weight	6.5KG
Voltage	AC100-240V, single phase, 1KW
Package Size	48x 39 x 38cm
Shipping Weight	＜10KG
Ambient temperature	0-40℃
Relative humidity	＜85%
Installation method	Place on a horizontal desktop
Warranty	1 year
