Battery Case Forming Machine with Customizable Dies for Solid State Battery Assembly

Battery Case Forming Machine with Customizable Dies for Solid State Battery Assembly



TMAX-SCK200 is pouch cell forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.

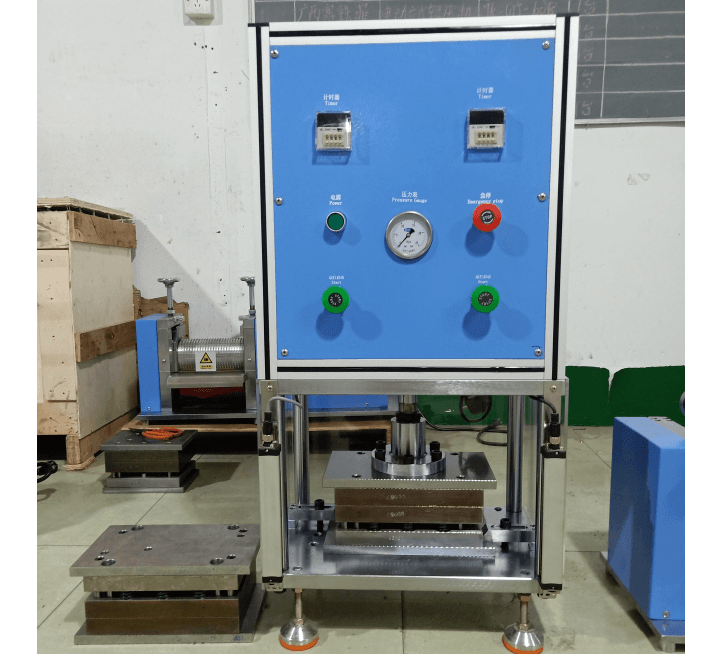

1 TMAX-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the of making pouch cell batteries.

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

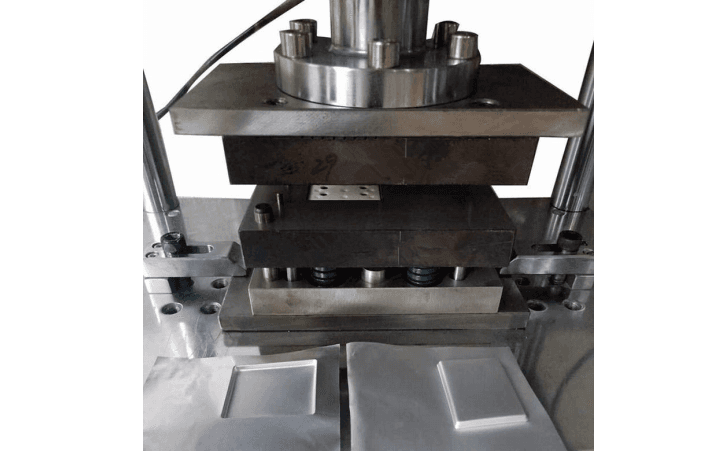

3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a customized size, which is more suitable for lab research.

Specifications

Model	Lab Polymer Battery Pouch Forming Machine TMAX-SCK200
Source voltage	AC 220V/110V,50/60HZ
Power	1oow
Warranty	Two years limited warranty with lifetime support

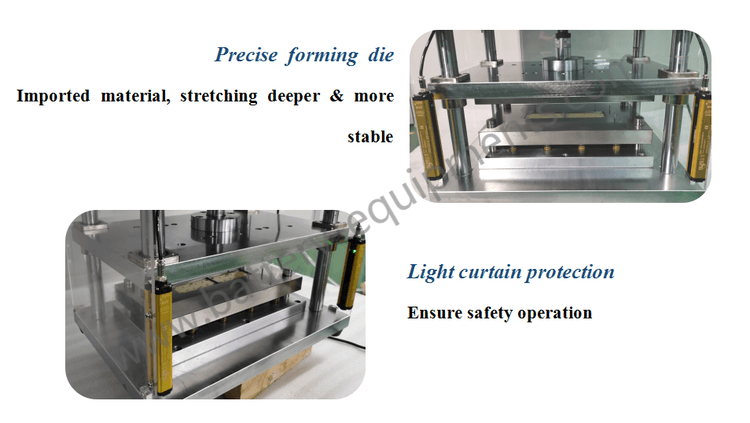

Advantages	1 Structure of guide pin,slide up and down smoothly with high precision 2 Change mould,adjust tensile depth simply,quickly 3 Use screen and casing protection,guarantee safety 4 High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating
Suitable aluminum film thickness	0.1-0.2mm
Suitable mold size	Customized as customer's request,with punching depth≤24mm
Max.Cup Depth	single pit punching depth≤24mm
Output	200-400EA/H
Output pressure	5T
Air source	0.5-0.7MPa
Mold materials	sS136 Die steel
Dimension (L*W*H)	460*320*925mm
Weight	About 130kg
