Cylindrical Battery Semi-Automatic Adjustable Electrode Slitter Machine For Coated Electrodes Plates Slitting

Model Number:: TMAX-SL650B
Type:: Electrode Slitting Machine
Dimension(L*W*H):: 20-500mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

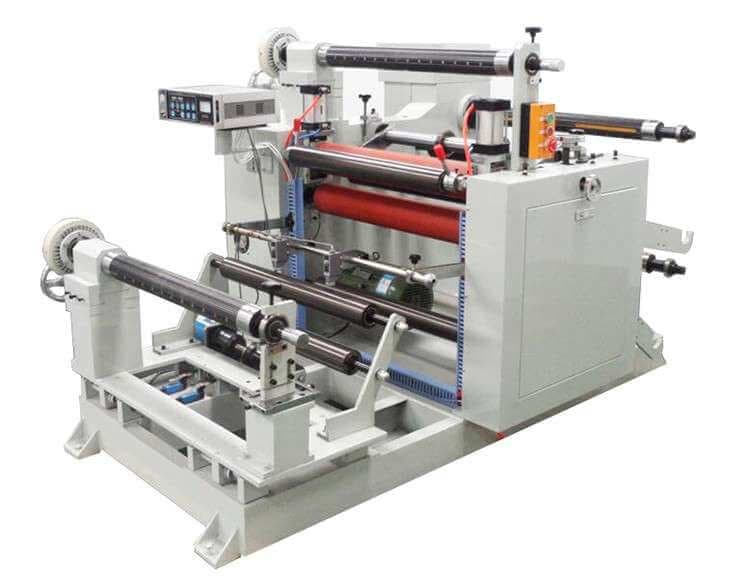

Cylindrical Battery Semi-Automatic Adjustable Electrode Slitter Machine For Coated Electrodes Plates Slitting

SPECIFICATION

The machine with

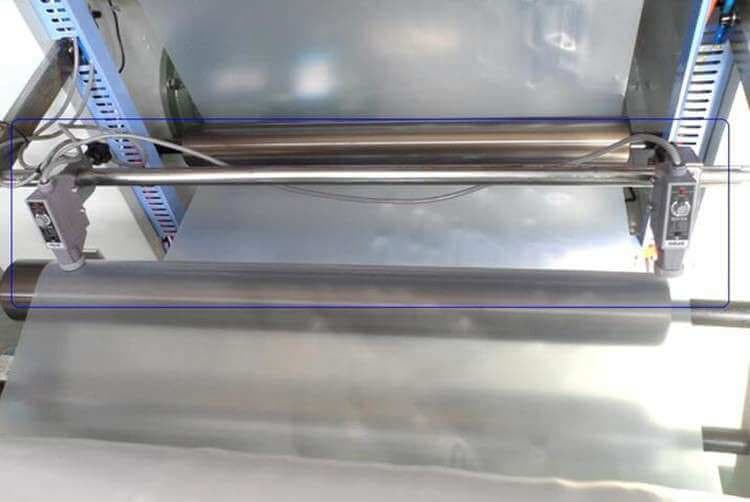

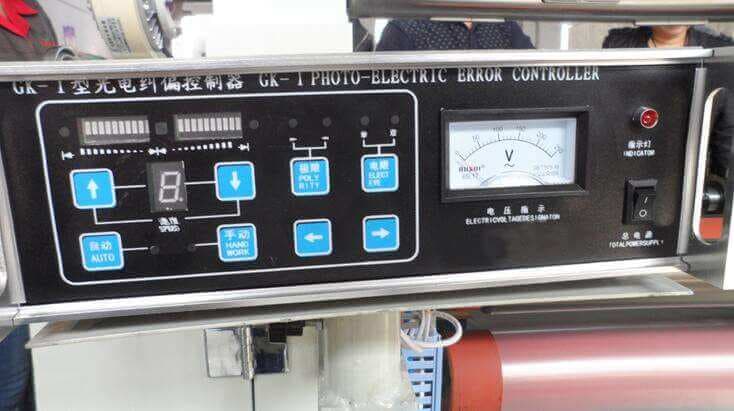

photoelectric tracking correction system, magnetic powder clutch for winding
and unwinding tension control, host frequency, cots on activities is controlled
by cylinder can also fit, slitting, can also separate joint or separate
cutting, accurate slitting, fast slitting speed and operation and maintenance
is convenient etc.

Model	TMAX-SL650B
Size(mm)	2400x1700x1300
Weight(kg)	1000
Power supply	AC220V
Power (kw)	2.2
Slitting speed(m/min)	80
Max slitting size(mm)	650
Min slitting size(mm)	8
Feeding roll diameter(mm)	600
Winding roll diameter(mm)	450
Slitting accuracy(mm)	±0.1mm
