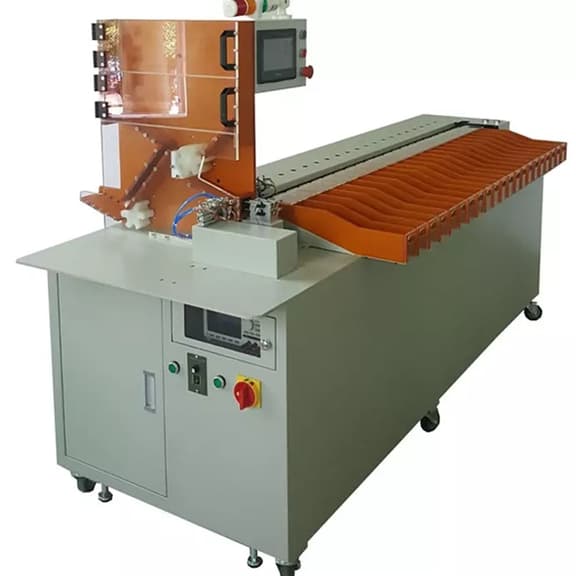

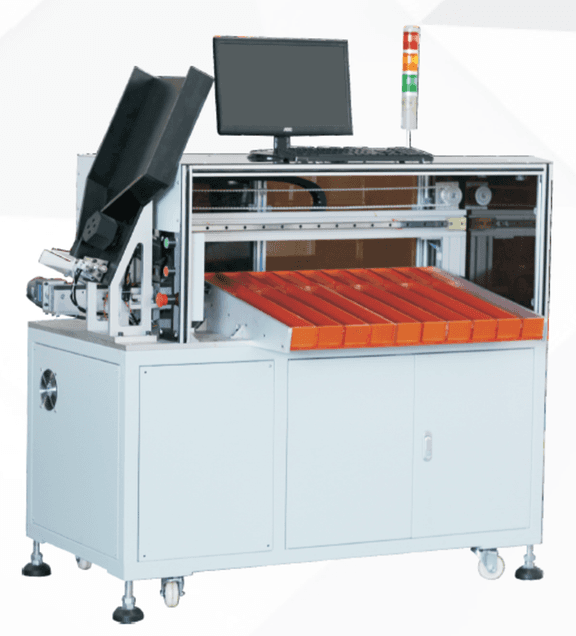

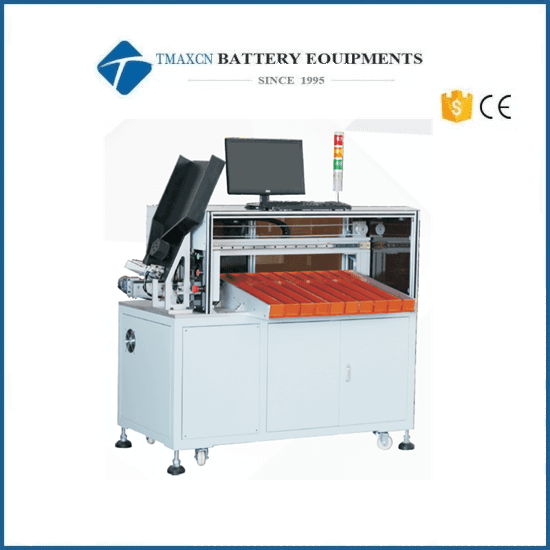

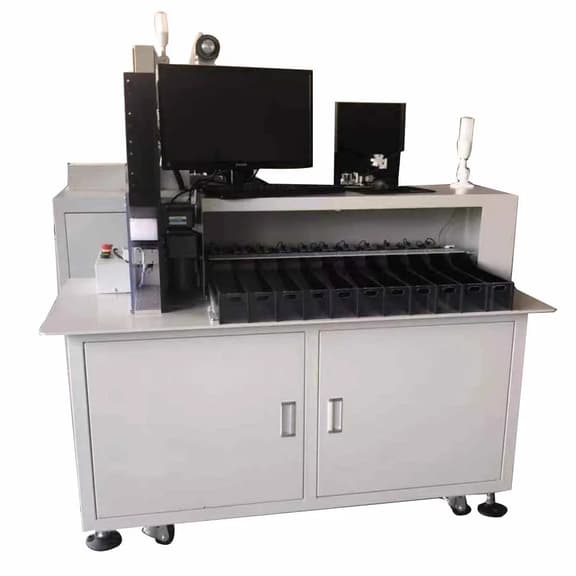

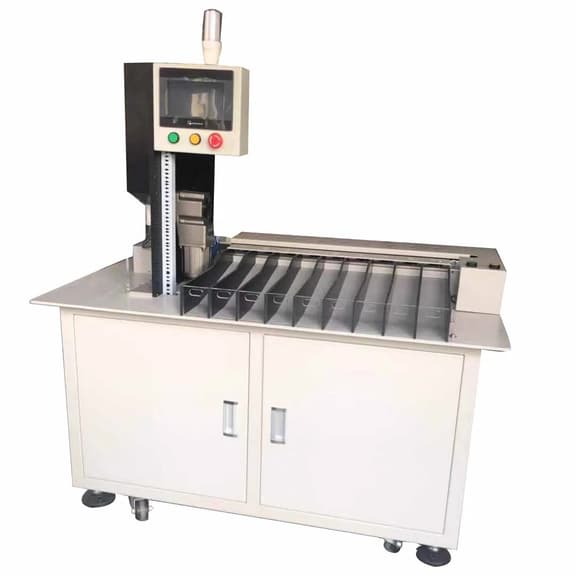

Automatic 10 Channels Battery Sorting Machine for 18650 26650 And 21700 Cylindrical Cell

Automatic 10 Channels Battery Sorting Machine for 18650 26650 And 21700 Cylindrical Cell

Model Number:
TMAX-FN-10
Type:
Automatic
Compliance:
CE Certified
Warranty:
Two Year Limited Warranty With Lifetime Support
Place of Origin:
China
Update:
Optional
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Automatic 10 Channels Battery Sorting Machine for 18650 26650 And 21700 Cylindrical Cell

Features:

It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

10 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells

Sort by cell's voltage and impedance up to 10 groups

Automatic sorting control

Fast sorting speed (80PPM)

Easy to refill cells during the process

wheels design, easy to move the machine to any operating place

Specifications:

Model

TMAX-FN-10

Voltage supply

220V/50HZ( no need air supply)

Power

<900w

Display screen

Large size LCD screen/Touch screen

Suitable for

Cylindrical 18650 or 26650 cells

Net Weight

<300KG

Internal resistance test

Test range:80mΩ

Accuracy:±0.015% rdg

Resolution:0.01Mω

Voltage test

Test range0-8V

Accuracy:±0.5% rdg

Resolution:0.01mV

Sorting speed

80PPM
