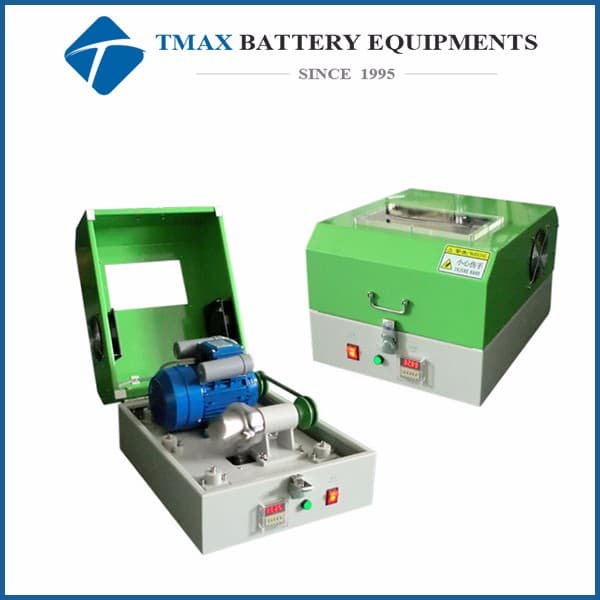

High-speed Vibrating Ball Mill Machine For Lab
- Model Number:
- TMAX-ZQM1
- Type:
- Ball Mill Machine
- Dimension(L*W*H):
- 50ml,80ml
- Net Weight:
- 50Kg
- Compliance:
- CE certificate
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
High-speed Vibrating Ball Mill Machine For Lab
1.Technical Parameters
|
Model |
TMAX-ZQM1 High-speed vibration ball mill machine |
|
Spec |
50ml,80ml |
|
Each max loading capacity |
1/3 of the milling tank volume |
|
Feed size |
<1mm |
|
Discharge size |
Mix 0.1μm |
|
Shimmy frequency |
1200 Circumferential / min |
|
Timing range |
0~999S and normally open file |
|
Motor spec |
Single-phase 220V 180W |
|
Current input |
Single-phase 220V 50Hz |
|
Size |
405×365×260mm |
|
Characteristic |
High-speed vibrating ball mill has an eccentric pendulum shaft, When the motor at high speed, generating eccentric swing tank; Bring the whole bracket down vibration, so that the grinding process is finished in a high speed wobble and vibration of three-dimensional space. Greatly improving the speed and efficiency of grinding. |
2.Machine structure
1). compression spring 2).motor 3). bearing housing
4). mill pot 5). platen 6). Rocker 7). triangle belt
