Product Description

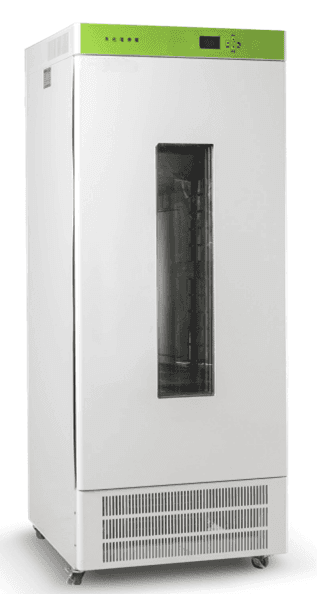

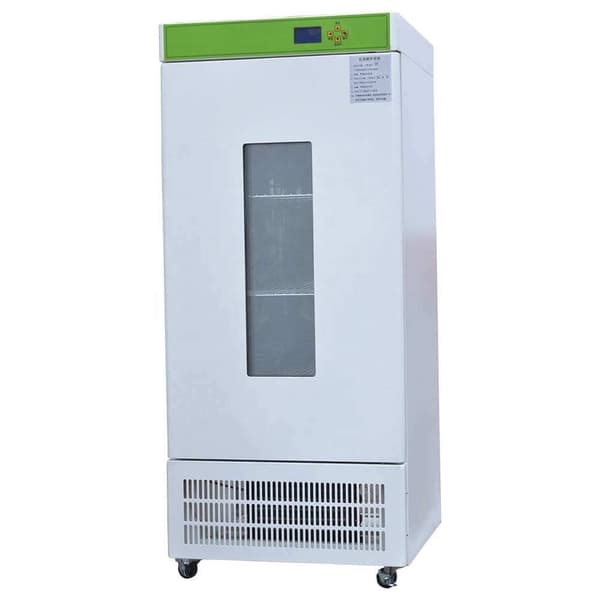

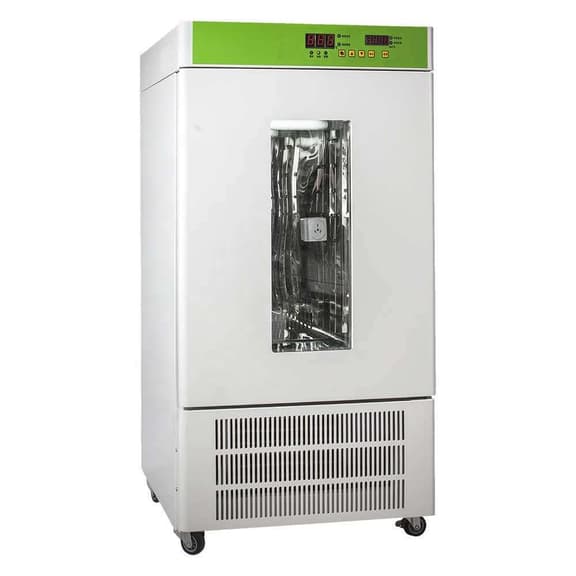

Laboratory Biochemical Incubator with LCD Display&RS485 Interface

Biochemical
incubator is suitable for environmental protection, health and epidemic
prevention, drug inspection, agricultural and livestock, aquatic and
other scientific research, universities, production departments. It is a
special constant temperature equipment for water analysis and BOD
determination, culture, preservation, plant cultivation and breeding of
bacteria, mould and microorganism.

Features

1.The chamber and working room are designed with circular arc structure.

2.The
workroom is made of mirror stainless steel plate, and the shelf can be
adjusted freely and assembled freely, which is convenient for cleaning
in the workroom.

3. 2 power outlets in the studio with lighting.

4.The workshop is equipped with fans to form forced convection.

5.The surface of the outer box is sprayed with plastic. The whole machine is beautiful, and easy to use and maintain.

6.The
door of the incubator is a double door design, the inner door is
tempered glass, which can directly observe the conditions of the culture
in the working room, and the outer door is a magnetic door seal with
good sealing performance.

7. Equipped with leakage protector.

8.
Equipped with auxiliary temperature controller to ensure that the
machine can still work normally (for heating) in case of loss of control
of main temperature controller.

9. It has the function of hot and cold automatic control and adopts the imported compressor.

10.
New microcomputer intelligent control system is adopted for temperature
control, LCD screen displays temperature with high precision and no
overshoot.

11.
RS485 communication interface is used to connect computers, display and
print temperature and time data with computers, providing strong
guarantee for data storage and playback in the test process.

SPECIFICATIONS

Model

LBI-80

LBI-150

LBI-200

LBI-250

LBI-300

LBI-400

Chamber Volume (L)

80L

150L

200L

250L

300L

400L

Temperature Range

0~60 ℃

Display Resolution

0.1 ℃

Temperature Stability

Heating:±0.5℃;Cooling:±1℃

Temperature Uniformity

±1℃

Timing Range

1~9999min

Power Rating(W)

180

250

300

350

400

550

Refrigerant

R134a

Power Supply

220±10%V, 50Hz

Continuous Operation

Long continuous operation

Chamber Size(W×D×H)cm

40×37×55

45×42×85

45×45×100

48×49×107

52×50×117

58×54×127

Exterior Size(W×D×H)cm

54×57×107

59×62×137

59×64×152

62×68×159

66×69×169

72×74×179

Package Size (W×D×H)cm

70×73×126

75×78×156

75×80×171

78×84×178

82×85×188

88×90×198

Net/Gross Weight(kg)

50/85

90/120

95/138

103/147

115/157

135/170

Shelves(standard/maximum)

2/8

3/13

3/15

3/16

3/18

3/20

Optional Parts

1.Multi-segment programmable control

2.Built-in printer

3.Φ25mm(50mm)test hole

4.RS485/232 connector

5.Wireless alarm system (SMS alarm system)
