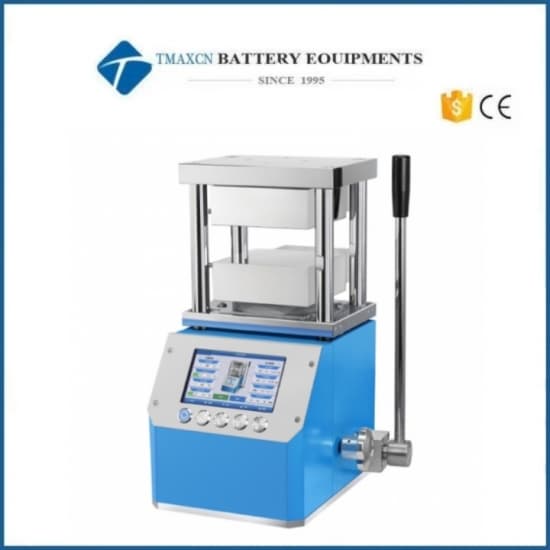

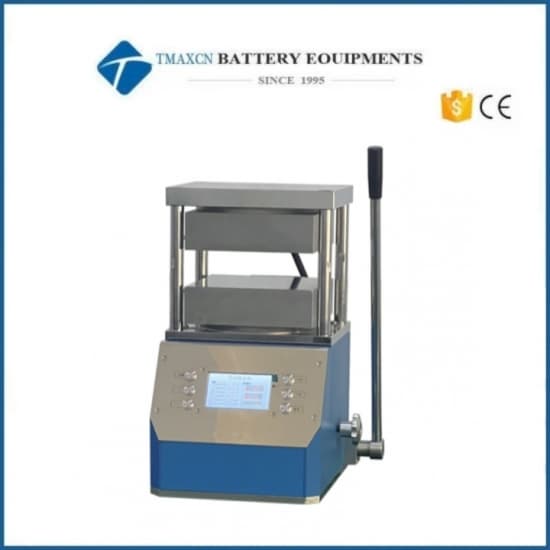

300C 500C Integrated Laminating Manual Heat Press Machine

Model Number:: TMAX-PC-600C/CG
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

300C 500C Integrated Laminating Manual Heat Press Machine

Heat Press Machine

Application field

We are a professional manufacturer of hydraulic powder presses and dies. Our hydraulic presses feature small size , high pressure and high pressure control accuracy , and have been widely applied in scientific research , teaching, testing and chemical engineering. In addition, the products can be used together with Fourier infrared spectrometer, fluorescence spectrophotometer and other testing instruments to substitute for imported products.

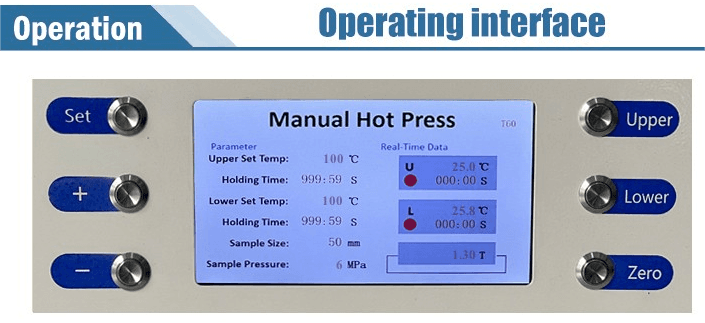

Set

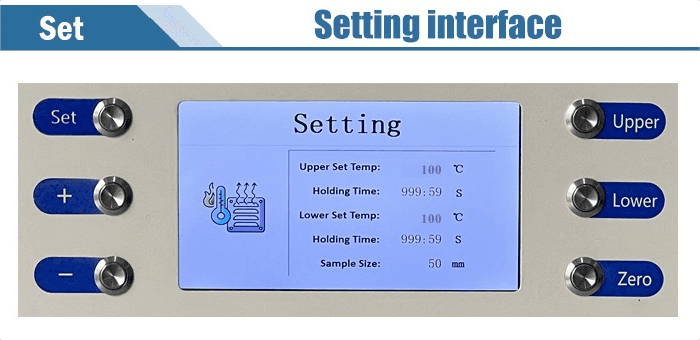

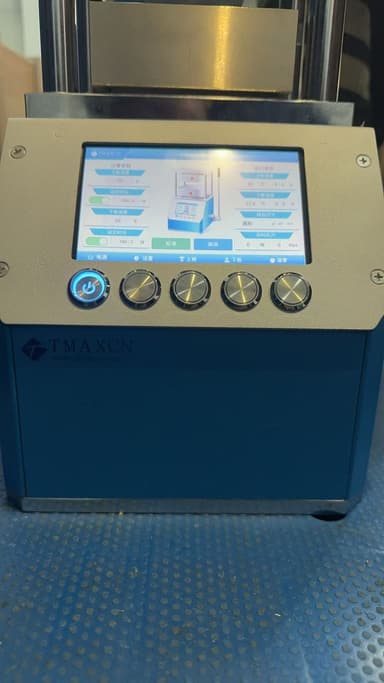

Set: In the operation interface, press the settings button to enter the settings interface, then press the settings button to move the settings content. After moving to the mold diameter, press the settings button again to return to the operation interface. Note: When the time is set to "0", it means that the time is set to infinity.

+: In the operation interface, press the "+" key to increase the setting number.

-: In the operation interface, press the "-" key to reduce the setting number.

Upper: Press the "Upper Plate" button on the operation interface, and the upper plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed,the heating will stop.Or press the "Upper Plate" button again to stop heating the upper plate. During the heating process, all setting buttons are invalid.

Lower: Press the "Lower Plate button on the operation interface, and the lower plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed,heating will stop.

Zero: If the sample is not in contact, but the device has already displayed pressure, it may be due to the weight of the heating plate. We can press the "reset" button to reset the pressure to zero.

Technical parameters

Instrument model	PC-600C/CG(500℃)
Pressure range	0-5.0 tons
Piston diameter	Chrome plated cylinder φ50mm (d)
Overall structure of main body	Equipment without sealing connection to reduce oil leakage point
Mold heating temperature	Room temperature -300.0℃/500.0℃
Constant temperature time	1 second~∞ second
Temperature control precision	0.1℃
Insulation method	Imported heat insulation board
Cooling method	Water-cooled rapid cooling [water cooler optional]
Mould size	Double plate heating 120120mm(MN)
Working space	14014060mm
Size of the whole machine	250230390mm (LWH)
Power supply	700W(220V/110V can be customized)
Main machine weight	55Kg

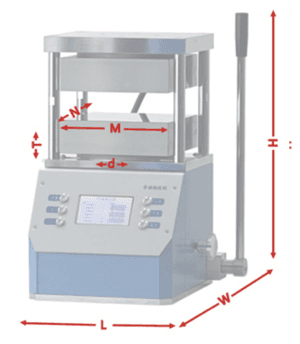

Dimensions of hot press

Heat Press Machine

1. We supply machines with battery technology support.

2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Rolling Press Machine	Battery Crimper	Film Coating Machine	Vacuum Sealing Machine

Battery tester	Battery Materials	Lab Mixer Machine	Spot Welding Machine

Pouch Forming Machine	Vacuum Glove Box	Laboratory Mill	Electrode Cutter/Slitter

1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
