Digital Vacuum Drying Ovens For Electrode Backing

Model Number:: TMAX-DZF-6050
Type:: Drying Ovens
Dimension(L*W*H):: Inner box size(L*W*H): 415*370*345 mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

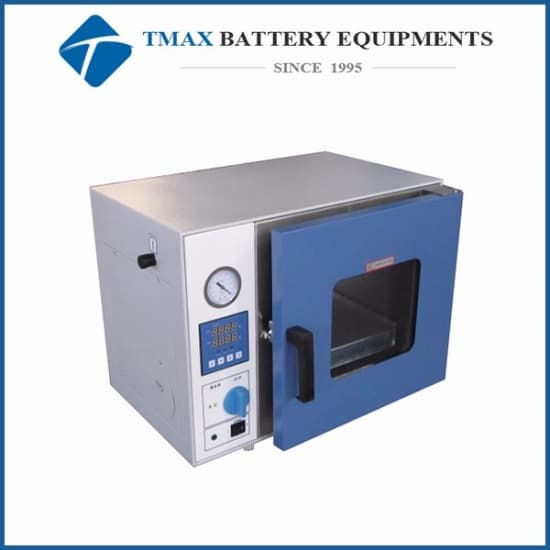

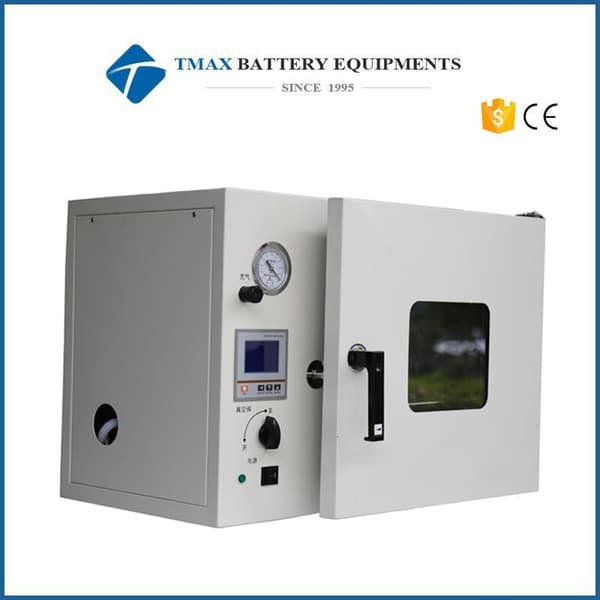

Digital Vacuum Drying Ovens For Electrode Backing

1 The DZF-6050 Vacuum Drying Oven Is mainly used For scientific research units, specialty universities, laboratories, industria mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.

2 The DZF-6050 Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.

3 Use DZF-6050 Vacuum Drying Oven for material heating drying under vacuum states has advantages :

3.1 Can reduce the drying temperature

3.2 Avoid some objects heating to oxidation

3.3 Avoid heating air to kill living cells

3.4 No dust damage

Model	Vacuum Drying Oven TMAX-DZF-6050
Source voltage	110VAC or 220VAC +/-10% selectable
Power	1500W
Warranty	Two Years Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	±0.5℃
Vacuum degree	-0.1MPa
Inner box size(LWH)	420350370mm
Dimension(LWH)	700600550mm
Package size	650850700mm

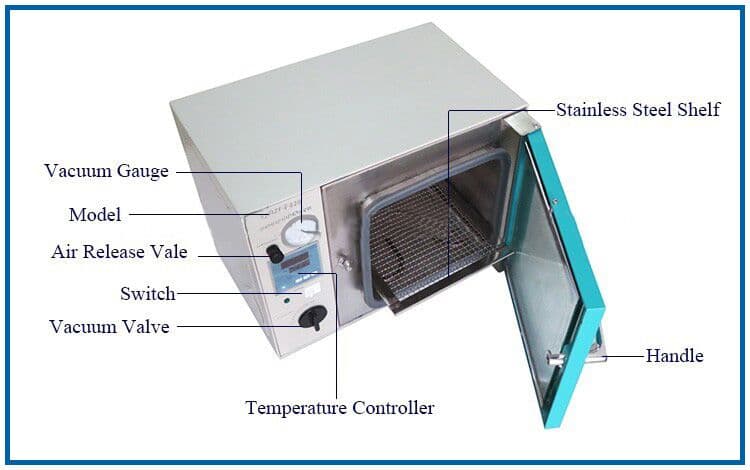

Temperature controller	1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	2pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf can be also chosen

Model	DZF-6021	DZF-6051	DZF-6020	DZF-6050	DZF-6090	DZF-6210	DZF-6250
Temperature range	RT+10-200℃		RT+10-250℃
Temperature fluctuation	0.1℃/±0.5℃
Vacuum degree	-0.1MPa
Source voltage	AC220V 50HZ					AC380V 50HZ
Power	500w	1000w	500w	1000w	1400w	2100w	3000w
Inner box size	300x300 x275	410x370 x345	300x300 x275	415x370 X345	450x450 X450	560x640 X600	700x600 x600
Dimension	580x450 x450	720x525 X535	580x450 x450	720x525 X535	615x590 X1470	720x820 X1750	1050x760 X910
Shelf	1	2	1	2	2	3	4
Inner box material	galvanized sheet		304 stainless steel
Temperature controller (standard)	microcomputer digital display controller
Ambient temperature	+5~40℃
DZF-6090 & DZF-6210 equipped with vacuum pump.Rest models do not with vacuum pump
