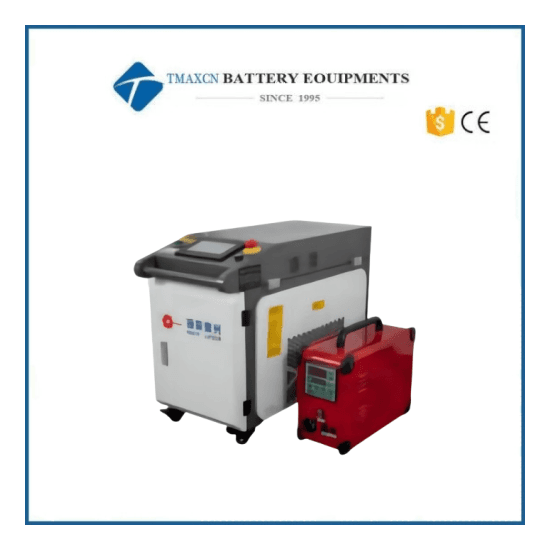

Handheld Laser Spot Welder Machine With Optional 1000W 1500W 2000W 3000W Power For Battery Material Welding

Handheld Laser Spot Welder Machine With Optional 1000W 1500W 2000W 3000W Power For Battery Material Welding

Model Number:
TMAX-HY-WA01
Input Power:
1500W
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

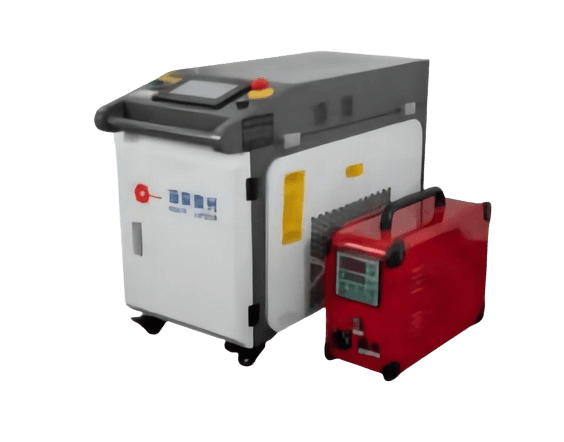

Handheld Laser Spot Welder Machine With Optional 1000W 1500W 2000W 3000W Power For Battery Material Welding



Application

Suitable for various metal materials. Widely used in welding fields such as 3C, medical equipment, automobiles, railways, ships, aviation, air conditioning condensers, home decoration, elevators, power batteries, etc.

Technical parameter

Model

TMAX-HY-WA01

TMAX-HY-WA01

TMAX-HY-WA01

TMAX-HY-WA01

laser power

1000W

1500W

2000W

3000W

Melting depth (stainless steel)

2.68mm

3.59mm

4.57mm

6.87mm

Melting depth (carbon steel)

2.06mm

2.77mm

3.59mm

4.79mm

Melting depth (aluminum alloy)

2mm

3mm

4mm

6mm

Automatic wire feeding diameter

0.8-1.2

0.8-1.6

0.8-1.8

0.8-2.0

Laser wavelength

1070+1-10 nm

1070+1-10 nm

Laser frequency

50-5000HZ

50-5000HZ

positioning system

Red light indication

Red light indication

Power regulation range

10-100%

10-100%

Cooling method

water-cooling

water-cooling

Spot size

1.2-3.0mm (optional)

1.2-3.0mm (optional)

Welding head

Swinging laser welding head

Swinging laser welding head

Power instability

<3%

<3%

Protective gas flow rate

15-20 liters per minute (argon or nitrogen)

15-20 liters per minute (argon or nitrogen)

source

220V 50&60HZ

380V /50&60HZ

Size (length * width * height) CM

90*40*70

90*40*70

90*40*70

115*65*87

Net weight

180KG

190KG

200KG

220KG
Features and advantages:

1. Easy to get started quickly, without the need for traditional professional welders.

2. No need to wear a protective mask, just wear laser protective glasses.

3. The weld seam is smooth and beautiful, with no polishing or only slight polishing.

4. By controlling the laser energy, the welding area only produces small or even no deformation.

5. The fiber length can reach 8-10m and can be used for welding large or long workpieces.

6. Low usage cost. Low energy consumption, low gas consumption, and low consumables.

7. Suitable for various welding processes: spot welding, seam welding, lap welding.

8. With the cooperation of automatic welding and robots on the sports platform, precise, sharp or complex parts can be welded according to specific procedures.

Comparison between laser welding and traditional TIG welding:

Tig welding

Laser welding

Heat

Very high

Very low

deformation

Easy to deform

No deformation

working hours

long

short

Welding workload

2 professional welders

1 operator

exterior

Not good-looking, needs polishing

Smooth and beautiful, no need for polishing

Solder joint

Large solder joints

Fine and adjustable welding points

perforation

Easy to puncture

Not easy to puncture, controllable operation

Protective gas

Argon or N is required

Argon or N is required

accuracy

Normal

precision

energy consumption

high

low

security

UV radiation

No radiation

battery equipment
