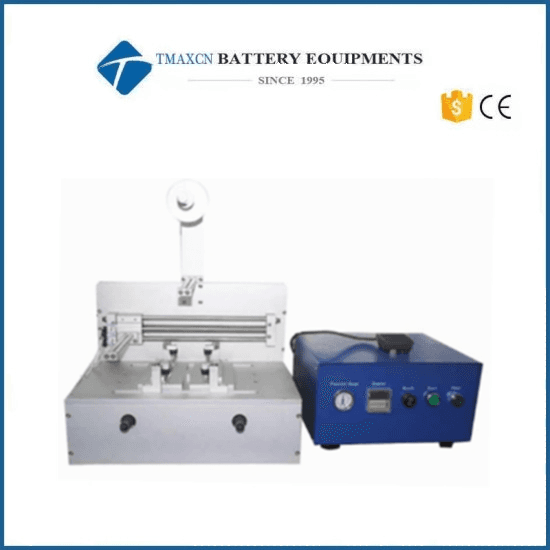

Lab Manual Pouch Cell Electrode Stacking Machine For Battery Stacking Research

Model Number:: TMAX-DP-200
Type:: Electrode Stacking Machine
Dimension(L*W*H):: L(0-200)mm, W(0-200)mm It Can Be Customized
Net Weight:: 50Kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Lab Manual Pouch Cell Electrode Stacking Machine For Battery Stacking Research

SPECIFICATION

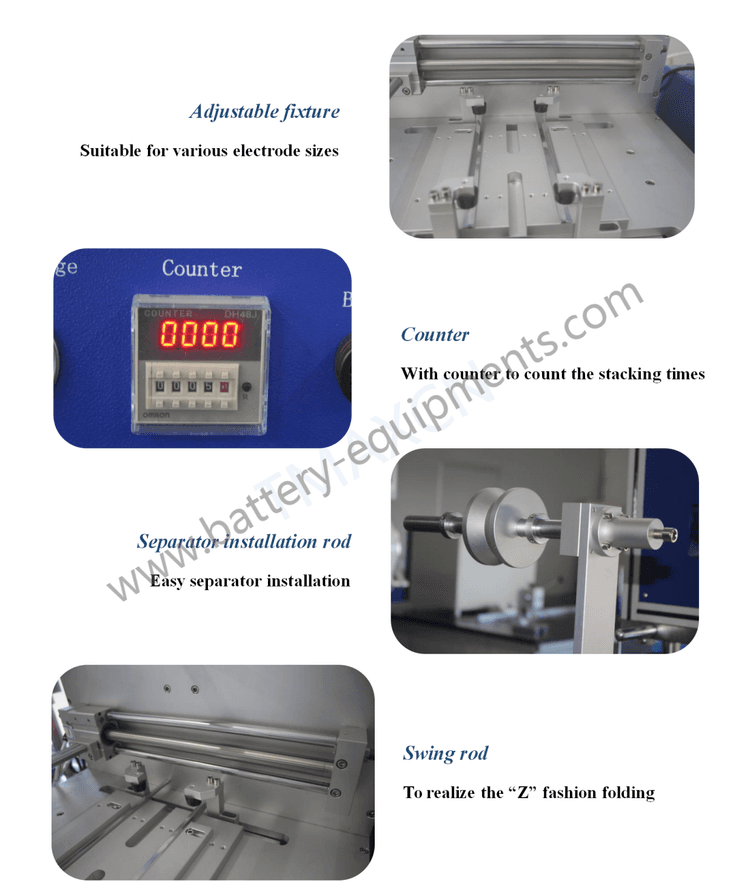

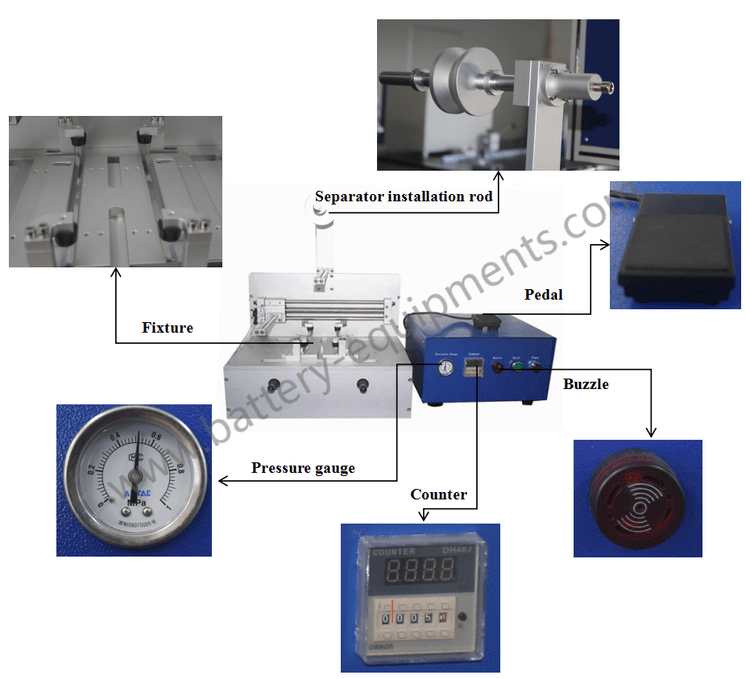

1 TMAX-DP-200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.

Stacking mode	Z fashion
Suitable separator coil	Roll type separator, 3-inch roll core, max.φ200mm applicable
Applicable electrode size	Length:20～200mm Width: 20～200mm Thickness: within 18mm Larger model for apply larger electrode is also available
Swing rod travel distance	300mm；
Power supply	AC220/110V; 50/60Hz
Power	200W
Air pressure source	0.4MPa～0.7MPa
Machine dimensions	L650mmW400mmH700mm
Control box size	L200mmW300mmH380mm
Weight	30Kg
