Laboratory Perovskite Solar Cell Plant 200℃ Benchtop Slot Die Coating Machine
- Model Number:
- TMAX-SC-SD-I
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description

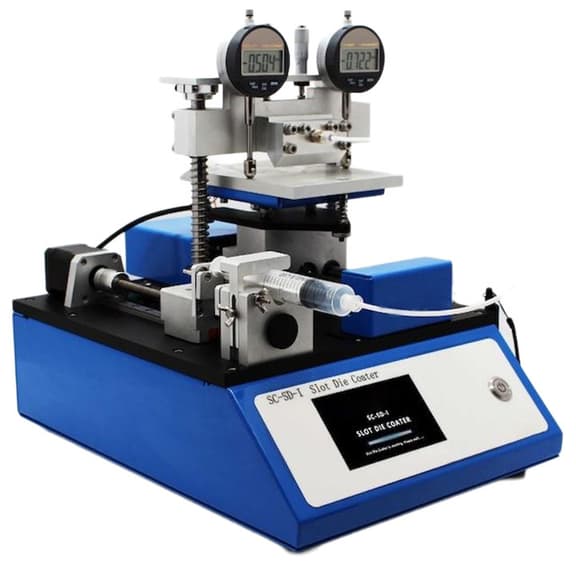

Laboratory Perovskite Solar Cell Plant 200℃ Benchtop Slot Die Coating Machine
Key Features：
1. The stage can be heated, and the coating width is adjustable. Heating range: room temperature -200°C, width: 25-50mm.
2. Designed by the American team and assembled in China, it is cost-effective.
3. Product quality assurance, there are multiple after-sales centers around the world, including the United States, Hong Kong and Beijing.
Slot Die Coater Specifications （SC-SD-I）
|
Brand |
TMAXCN |
|
Origin |
R&D by American team, production and assembly in Beijing |
|
Slot-Die Head Coating Width |
50 mm (maximum) |
|
Slot-Die Shim Thickness |
100 μm |
|
Hotplate Temperature |
200°C (maximum) |
|
Stage Travel Length |
100 mm (maximum) |
|
Coating thickness range |
1-1000 μm |
|
Minimum Stage Speed |
100 μm.s-1 |
|
Maximum Stage Speed |
50 mm s-1 |
|
Minimum Syringe Speed |
12 μm.s-1 |
|
Maximum Syringe Speed |
5 mm.s-1 |
|
Maximum Head to Substrate Travel Distance |
13 mm |
|
Power Supply |
DC 24 V, 6.2 A, via 100-240v 50/60Hz power adapter |
|
Dimensions |
Depth x Width x Height (360 mm x 280 mm x 190 mm) |
|
Shipping Weight |
＜10kg |
|
Ambient temperature |
0-40℃ |
|
Relative humidity |
＜85% |
|
Installation method |
Place on a horizontal desktop |
|
Warranty |
1 year |
