Three-Electrode Split Test Cell For R&D Battery

Model Number:: EQ-3ESTC
Dimension(L*W*H):: 5 - 24 Mm Dia
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Three-Electrode Split Test Cell For R&D Battery

SPECIFICATION

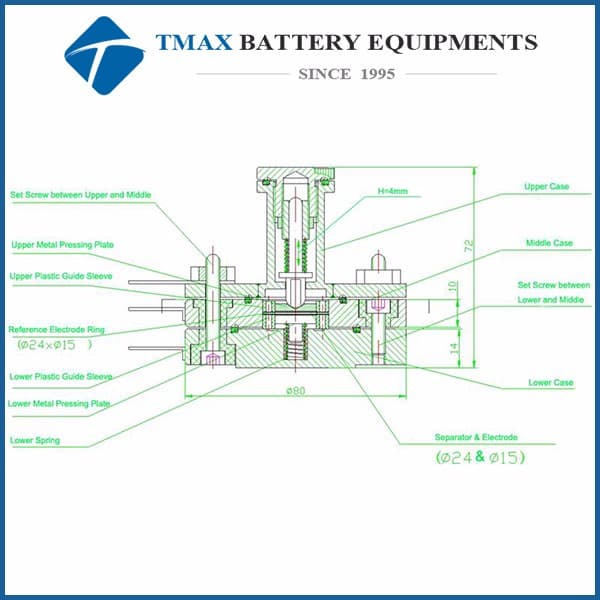

1. It is designed test various electrodes easily and quickly by providing the user a structure to simulate assembled coin cells without the need to crimp actual coin cell cases.

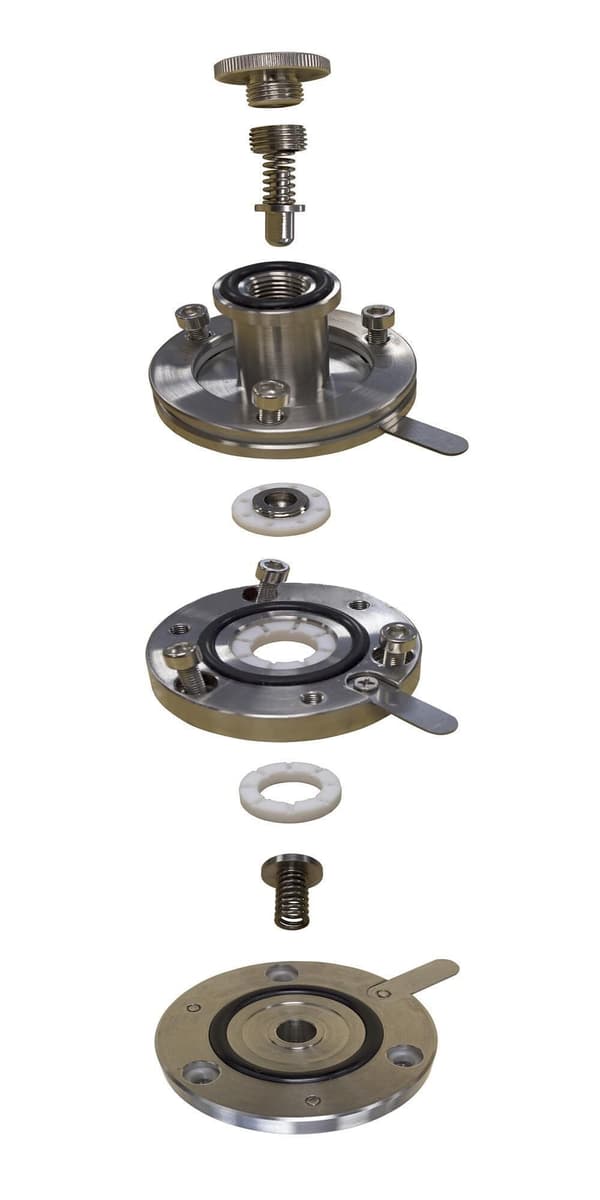

2.Two sides of test cellconnect to both electrode (the anode and cathode), with the middle being connected to the

reference electrode which can be used for monitoring voltage variations of the two electrodes.

3.This test cell can accept 15 mm diameter electrodes and 24mm separators.

Model	Three-Electrode Split Test Cell EQ-3ESTC

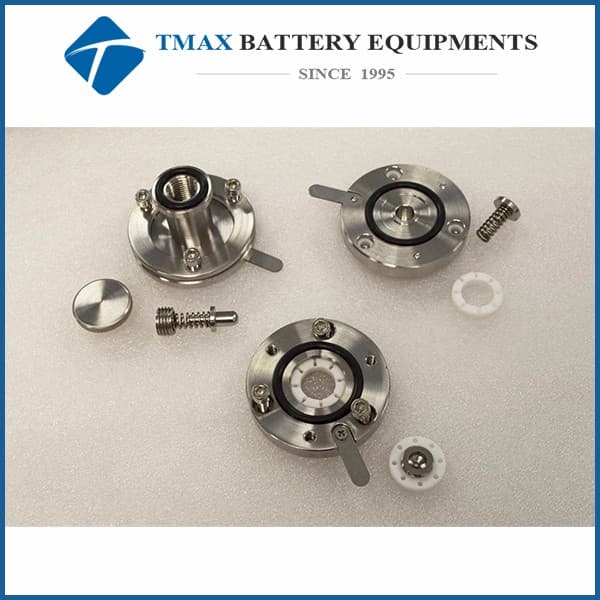

Features	Silicon O-ring in between the three plates to ensure a good sealing up to a temperature of 300 °C Adjustable spring tension on top to accept various electrode thicknesses Easy to separate after testing Small enough to be put into and taken out from a glove box
Spec	Electrode diameter :Φ24mm Dimension:Φ80mm*80mm
Optional Accessories	Various Sizes Of Discrete Battery Research Suite Can Be Customized
