Turntable type hot press Forming machine for lithium polymer battery

Turntable type hot press Forming machine for lithium polymer battery

Model Number:
TMAX-THPM
Type:
Punch Forming Machine
Dimension(L*W*H):
300*350mm Customizable
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

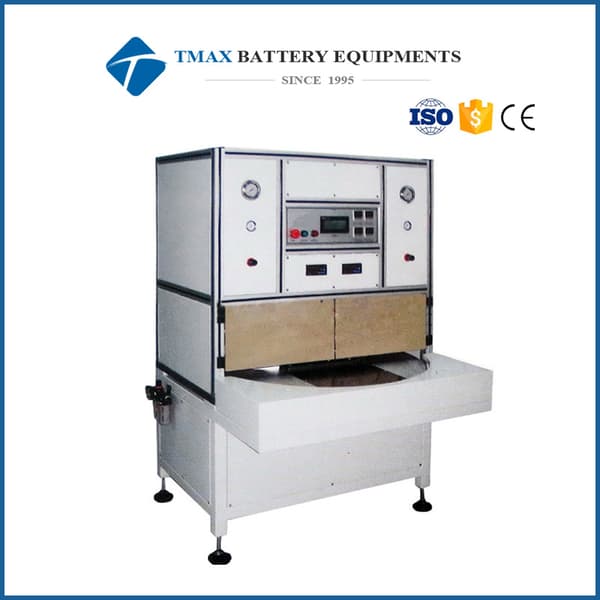

Turntable type hot press forming machine for lithium polymer battery

1.Applicable to soft packing lithium ion battery core continuous hot press forming.

2.Adopt temperature controller and thermocouple control heating tube to set temperature.

3.Booster cylinder make the up and down mould press on the battery, and transports the heat

to the battery.So the battery can shape by a certain temperature and pressure.

Main technical parameters

TMAX-THPM

Table size

300*350mm Customizable

Capacity

According to the setting time

Max press pressure

0-3T Adjustable

Depth of parallelism

0.05mm

Max heating temperature

260°C Adjustable

Temperature accuracy

±5°C

Air supply

≥0.6MPa

Source voltage

AC220V

             hot press forming



 battery equipment
