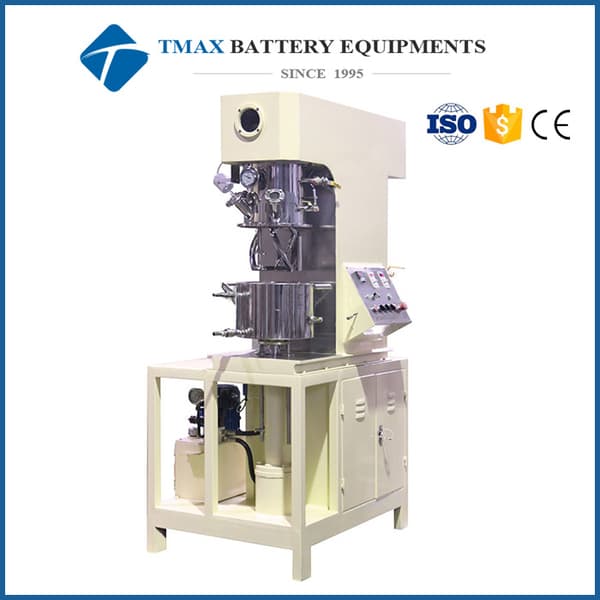

1-3L vacuum planetary mixer for polymer battery production line

1-3L vacuum planetary mixer for polymer battery production line

Model Number:
TMAX-PXFZH-3L
Dimension(L*W*H):
700*600*300mm
Max. Loading Capacity:
0-1400r/min
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

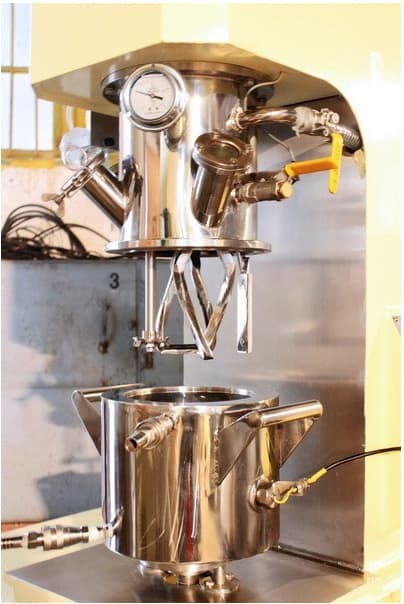

1-3L vacuum planetary mixer for polymer battery production line



This machine is used for lithium ion battery material slurry vacuum mixing,  suitable for lithium ion battery lab research.

Main technical parameters

Performance

Design capacity

3.8L

Working capacity

1-3L

Dimension

Dia180×h.150

Power motor 1

for agitating / scraping and planetary

0.75kw (e.g. 1.0HP)

--380v/3phase/50hz

--1500rpm

Power motor 2

for H.-S. dispersing

1.1kw (e.g. 1.5HP)

--380v/3phase/50hz

--3000rpm

Self-agitating speed

0~64rpm (based on 50hz)

Planetary / Scraping speed

0~52rpm (based on 50hz)

Self-dispersing speed

0~5700rpm (based on 50hz)

Linear velocity

0~16m/s (based on 50hz)

vacuum degree

-0.098MPa

Vacuum Mixer



battery equipment
