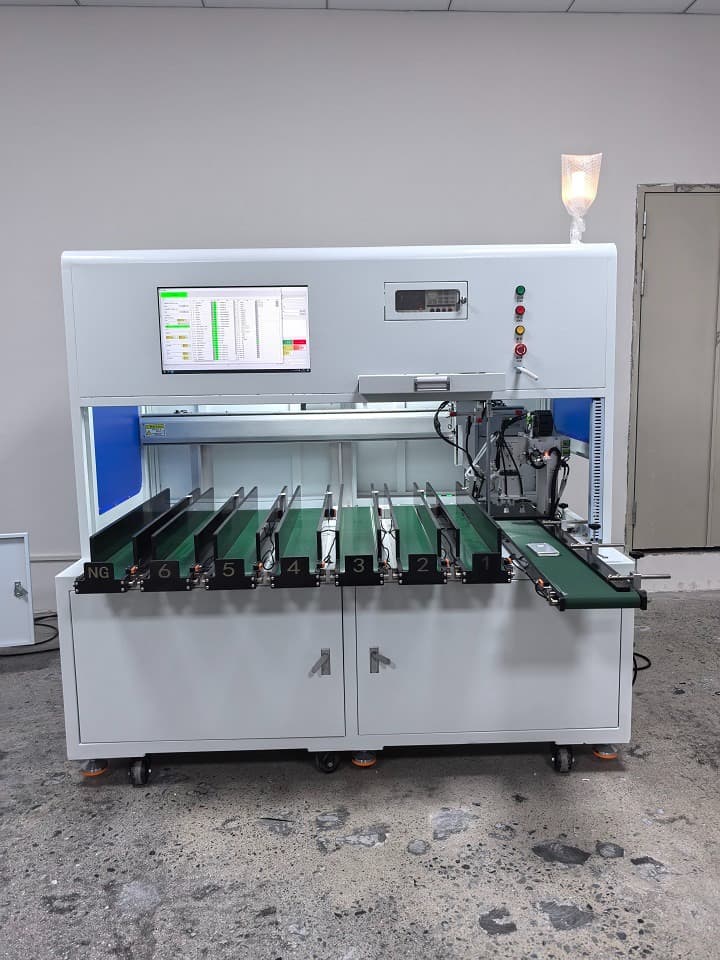

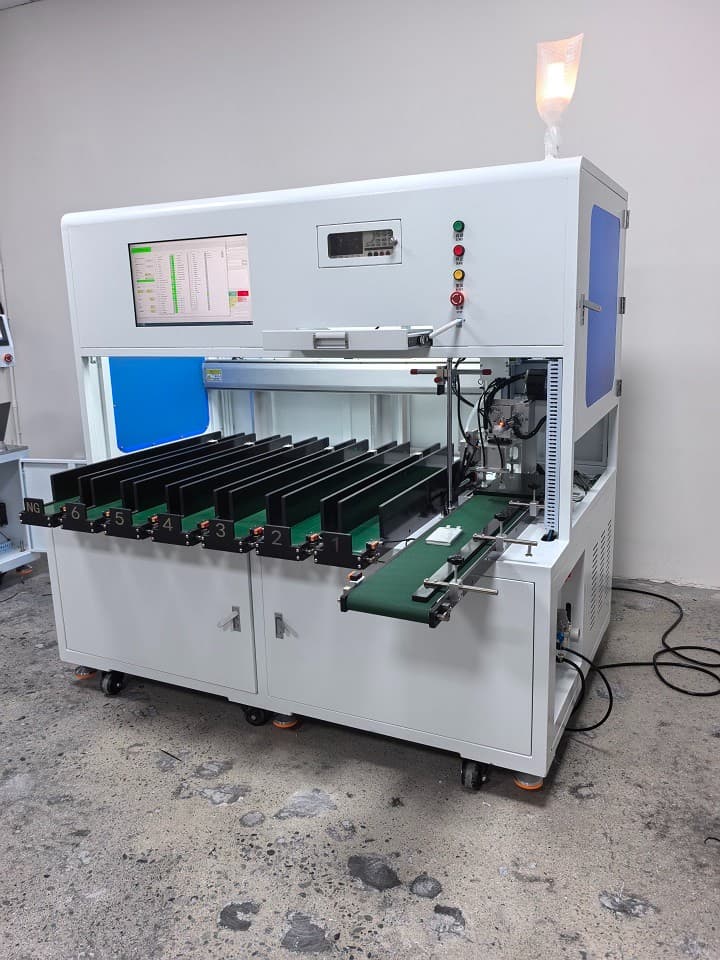

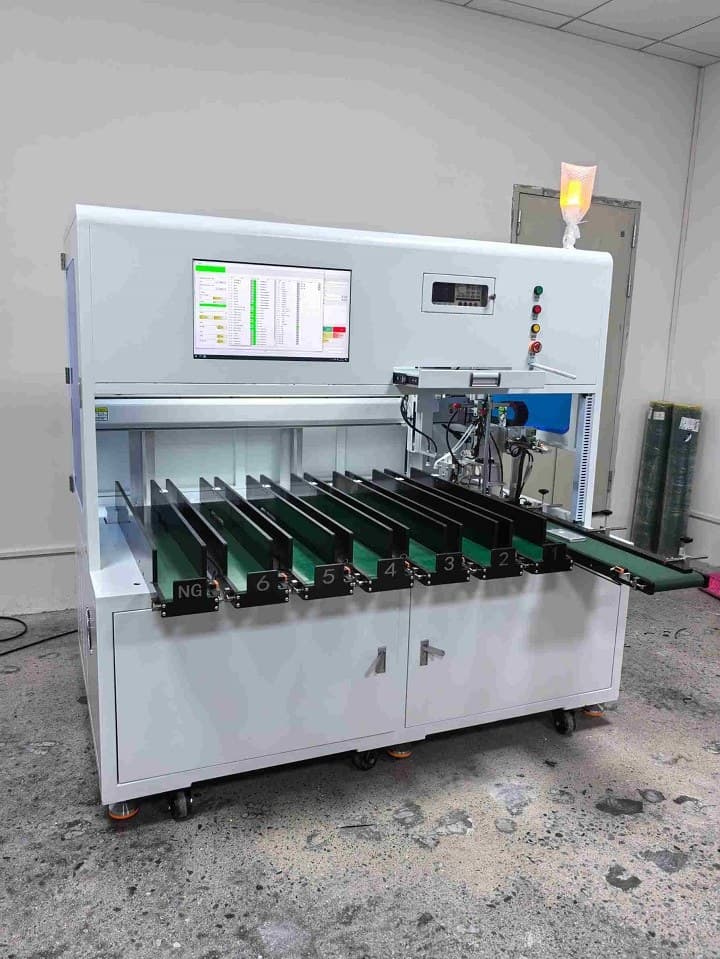

Automatic 7-Channel Pouch Cell Sorting Machine

Automatic 7-Channel Pouch Cell Sorting Machine

Functional Overview

The Automatic Polymer Lithium Battery Sorting Machine is a high-efficiency automated system designed for the post-production grading and sorting of lithium polymer batteries. It is suitable for power batteries, 3C digital batteries, and energy storage battery applications.

The system meets the precise grading requirements of modern battery pack production and complies with international safety standards. With an intelligent automation design, it supports the transition toward Industry 4.0 manufacturing and provides an effective solution for improving production efficiency and consistency for battery manufacturers.

Main Performance Parameters

1) Applicable Battery Type: Polymer lithium battery

2) Compatible Size Range: Length 50–170 mm, Width 20–100 mm, Height 4–20 mm

3) Control System: PLC programmable control

4) Integrated Functions: Fully automatic loading, testing, code scanning, and sorting process, reducing manual intervention

5) MES Interface: Real-time recording of QR code and test data, with SPC analysis report generation

6) Sorting Speed: Up to 1000 PCS/hour per unit — more than three times the efficiency of manual sorting

Equipment Environmental Requirements

Equipment Parameters

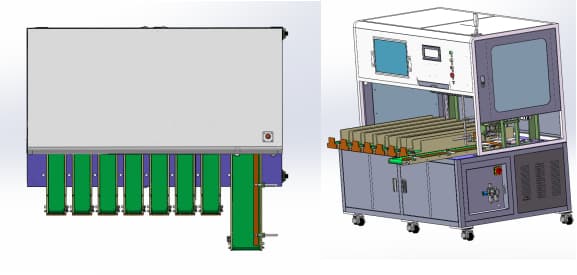

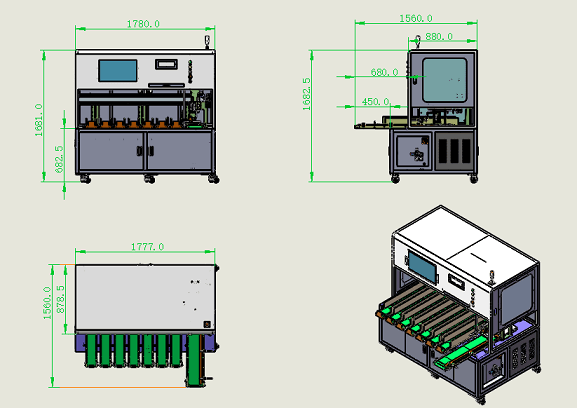

Machine appearance and dimensions

Mainframe length*width*height: L1800mm*W1570mm*H1750mm

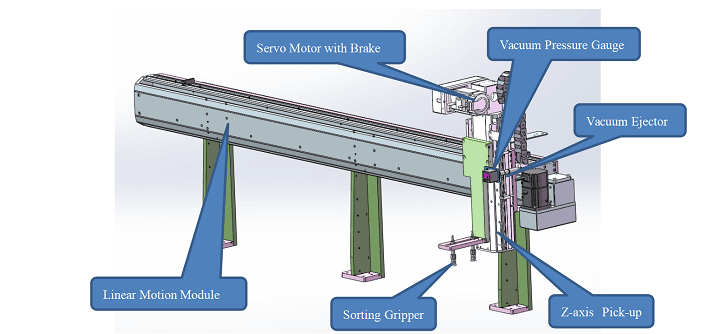

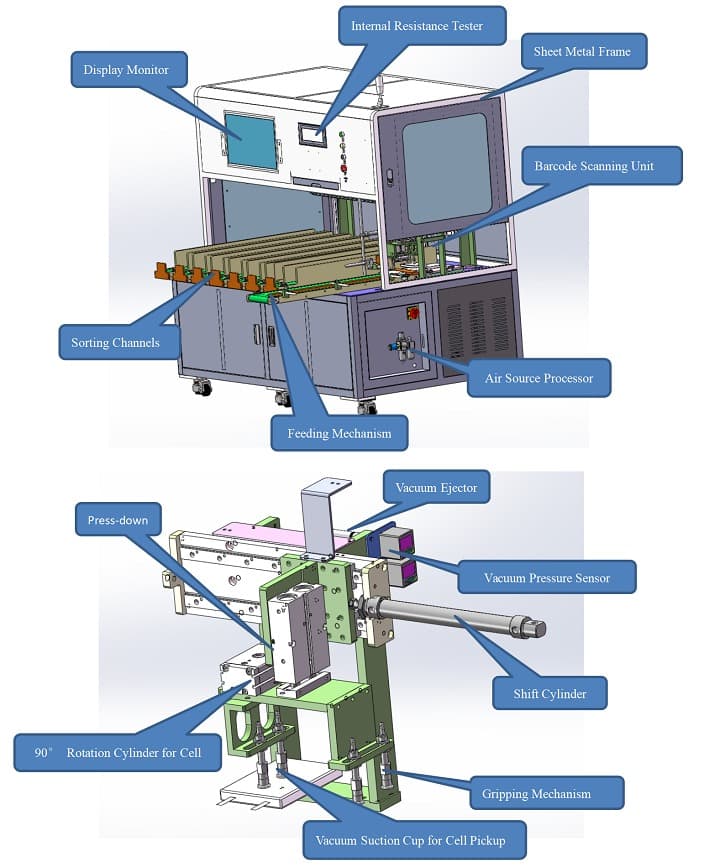

Machine Structure and Configuration

The sorting machine consists of a metal frame platform, pneumatic components, servo motors, sensors, PLC controller, and industrial control system.

Main Configuration Table
