Lab Cylindrical Quantitative Flat Mold With Handle

Model Number:: TMAX-CQM
Compliance:: CE certificate
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

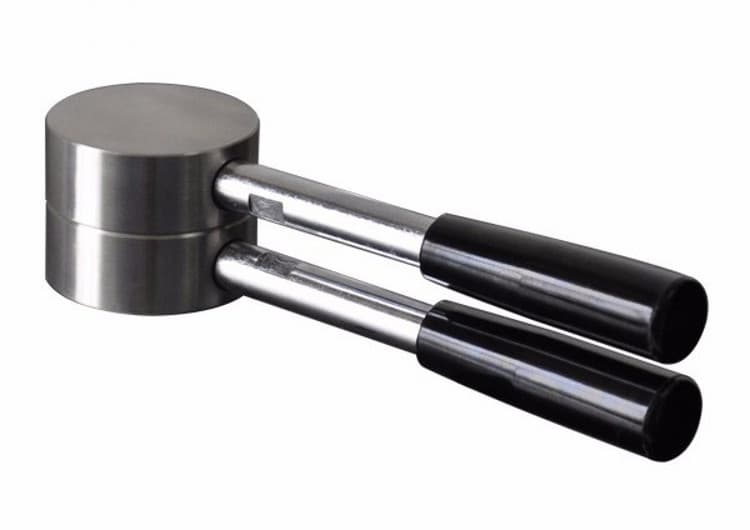

Lab Cylindrical Quantitative Flat Mold With Handle

Cylindrical quantitative flat mold is mainly used for sample preparation of nylon, plastic, PE and other materials. It is used with infrared spectrometer as a tableting accessory for material quantitative analysis. The tablet diameter is Ф20mm and the thickness is 0.2-1mm. It can also be matched with our hot press Used for heating test of samples. Special mold size, specification, shape, material, etc. can be customized according to customer needs

Specifications

Name	Quantitative flat mold
Actual drawing of molding sample
Compressible sample shape	Cylindrical, circular slice, cylinder, etc.
Common sample size	Generally <Ф20mm, Ф6, Ф8, Ф10, Ф12, Ф13, Ф15, Ф18, Ф20mm, etc.
Mold material	Alloy tool steel:Cr12MoV
Sample thickness	0.1mm, 0.2mm, 0.5mm, 1mm
Mould dimensions	Ф200×60mm
Mould weight	3.2g
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
