1750°C Muffle Furnace Heat Treatment for Laboratory Equitment

Model Number:: TMAX-1750DD
Compliance:: CE compliant
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

1750°C Muffle Furnace Heat Treatment for Laboratory Equitment

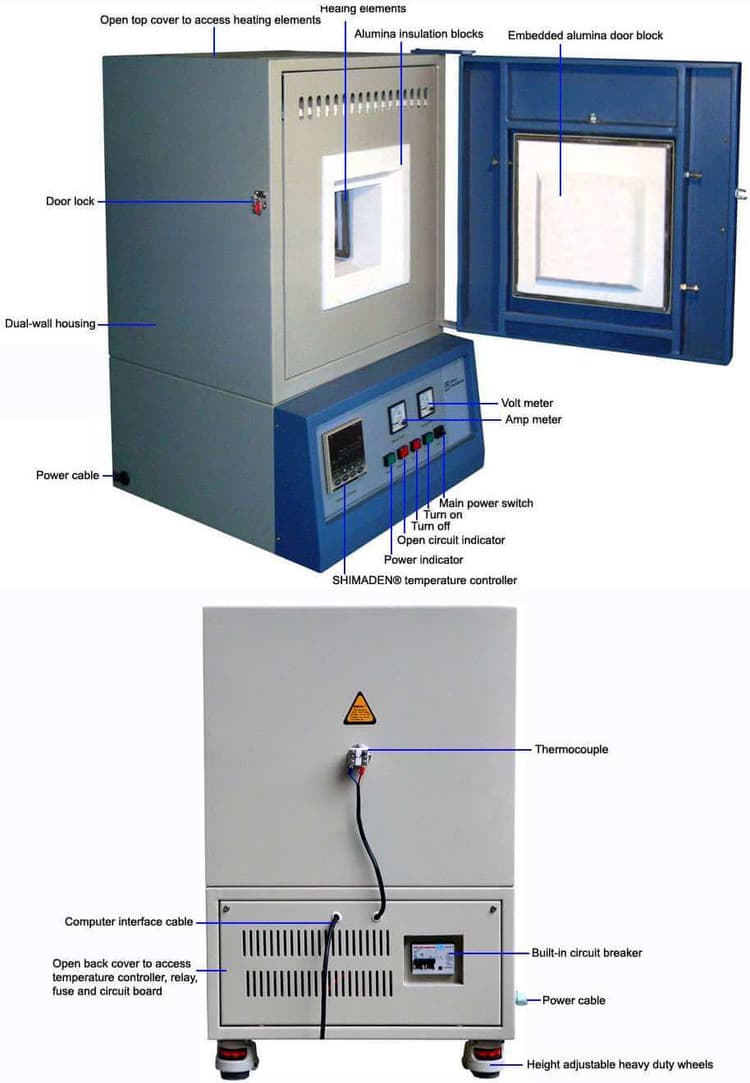

Muffle furnace Structure:

High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch. Doble layer sreel case with forced air cooling to ensure lower saferface temperature. One optional venting port is built on the top of furnace,need at extra cost .

Muffle furance details specification:

Item No.	TMAX-1750DD
Chamber size:	100x100x100 mm, Capacity: 1 liter.
Power:	2000 W Max. ( power cord is included )
Voltage:	AC 220V 50/60 Hz;
Max. Temperature :	1800 °C for short time ;
Continuous Working Temperature:	1750 °C Max. ;
Max. Heating Rate:	0-30 °C /min,Suggest to be 10.C/min.
Temperature Controller :	PID automatic control and auto-tune function. 30-50 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation.
Temperature Accuracy :	+/- 1 °C
Heating Elements :	MoSi2 heater.
Thermocouple :	B type
Standard parts:	crucible tongs 1pc,high temperature gloves 1 pair,one user manual.
Optional parts:	PLC touch screen controller, paperless recorder,Remote communication control system, observation window, Gas inlet and venting port are installed for using at oxygen or inert gas atmospheres.

Muffle furnace Standard Sizes:

Type	Furnace size:	Working/Max.temperature	Delivery time
1800.C muffle furnace	100x100x100mm	1750.C/1800.C	1-30 days
1800.C muffle furnace	200x150x150mm	1750.C/1800.C	1-30 days
1800.C muffle furnace	300x200x200mm	1750.C/1800.C	1-30 days
1800.C muffle furnace	400x300x300mm	1750.C/1800.C	1-30 days

Warranty: Two years limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.

Muffle Furnaces

Standard Package

Part description	Quantity
muffle furnace	1 pc
Type S thermocouple	1 pc
Stainless steel tongs	1 pc
Spare heating element	2 pcs
Alumina thermal cushion block	1 pc
Thermal gloves	1 pair
Spare fuse	2 pcs
USB/RS485 computer interface kit	1 set
