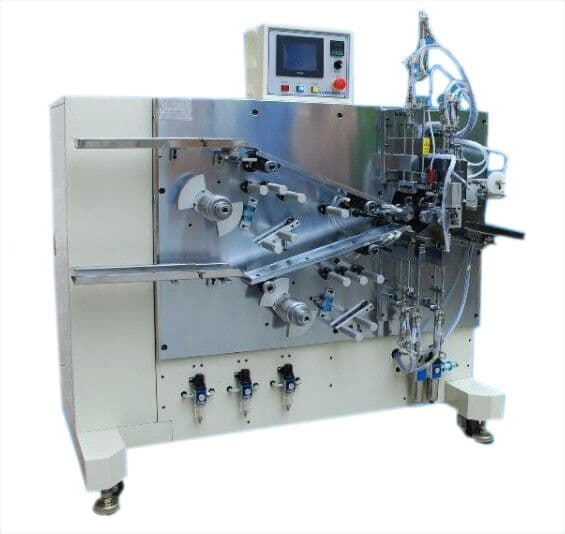

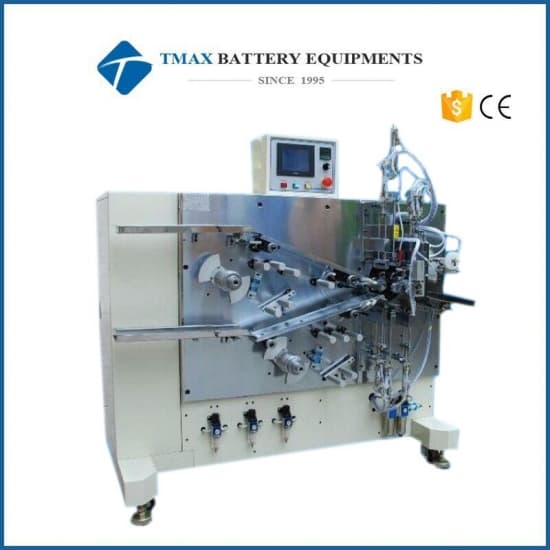

Automatic Cylinderical Battery Electrode Winding Machine
- Model Number:
- TMAX-YS-BLY40
- Type:
- Electrode Winding Machine
- Input Power:
- 1KW
- Net Weight:
- 550kg
- Compliance:
- CE certificate
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
Automatic Cylinderical Battery Electrode Winding Machine
Function:
Apply to cylindrical and prismatic battery Replaceable Electrode winding needles,Suitable for various of batteries,Model changed fast, simple
Technical parameters:
|
Machine model |
Apply to cylindrical cell |
Apply to prismatic cell |
||||
|
Suitable model |
14430,14500,17500,17650 |
Width: 20~100mm |
||||
|
Electrode pieces width |
<65mm |
<100mm |
<135mm |
<30~90mm |
<90~150mm |
<150~200mm |
|
Electrode pieces length |
≤1500mm |
≤1500mm |
||||
|
Winding speed |
3~5ppm |
3~5ppm |
||||
|
Size |
L*W*H 1350*800*1600mm |
L*W*H 1600*900*1600mm |
||||
|
Weight |
600kg |
750kg |
||||
|
Air supply |
Compressed air: 0.6 ~ 0.7Mpa, Vacuum: -0.095Mpa |
Positive pressure : 0.6 ~ 0.7 Mpa, Vacuum:-0.095Mpa |
||||
|
Power supply |
AC220V,0.8KW |
AC220V, 1.0KW |
||||
