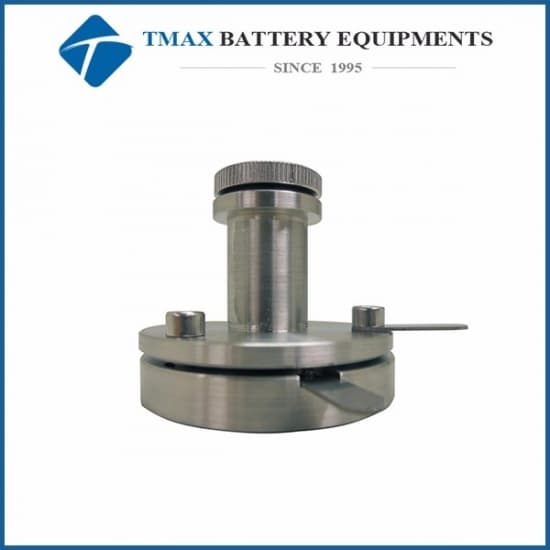

Coin Cell R&D Steel Split Test Cell

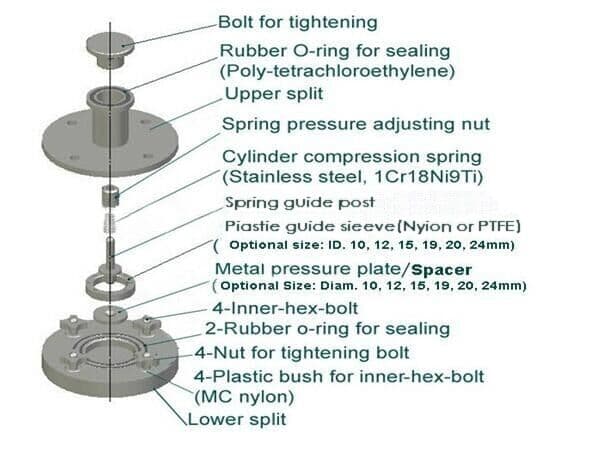

Structure

Full stainless steel SS304

Max. Cell Thickness

6mm  (cathode+separator+anode)

Features

1.      A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling

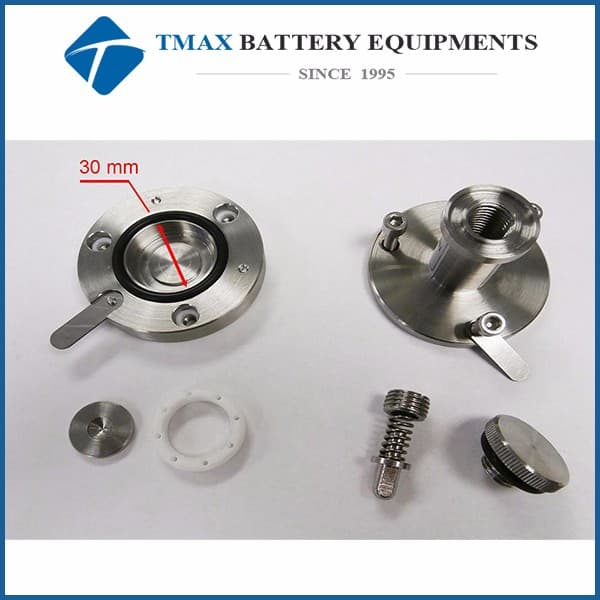

2.      Sealed by electrolyte corrosive-proof PTFE O-rings  (click picture below left to order spare )

3.      Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. (click pic below right to order spare )

4.      Easy to separate after testing

5.      Small enough to be put in and taken out from a glove box

Max. Working Temperature

250 ºC

Optional

1.      Please select the insert size in the option bar. 5, 10, 12, 15, 19, 20, and 24 mm diameter inserts are available.

2.      Anti-corrosive Au coating on the cell internal and inserts is an option.
