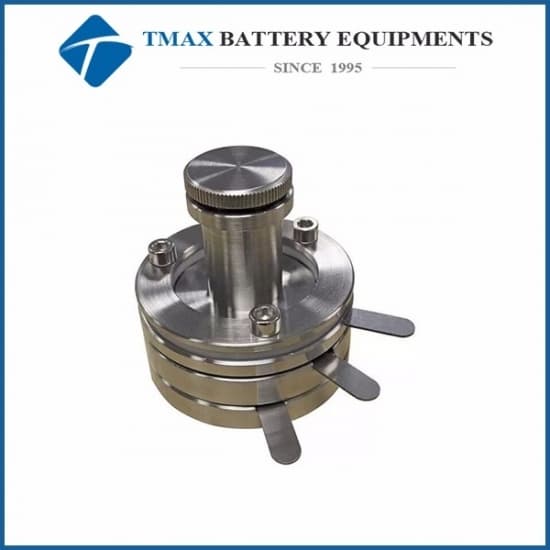

Coin Cell Research Three Electrode Split Test Cell

Product Description

1. It is designed test various electrodes easily and quickly by providing the user a structure to simulate assembled

coin cells without the need to crimp actual coin cell cases.

2.Two sides of test cell connect to both electrode (the anode and cathode), with the middle being connected to the

reference electrode which can used for monitoring voltage variations of the two electrodes.

3.This test cell can accept 15 mm diameter electrodes and 24 mm separators.

Model	Three Electrode Split Test Cell EQ-3ESTC

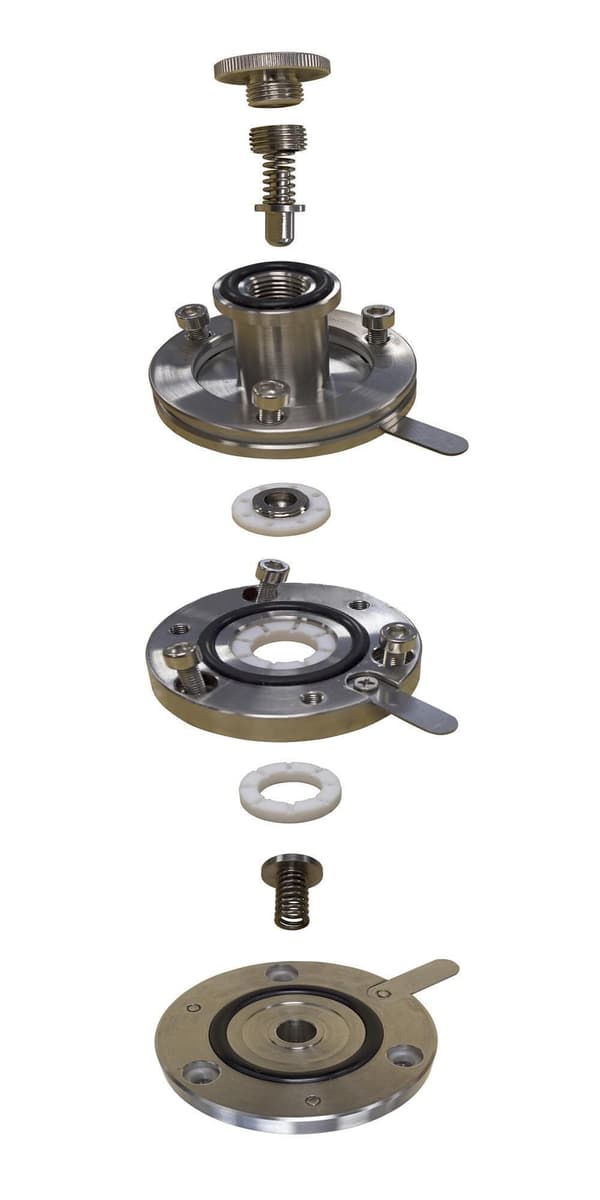

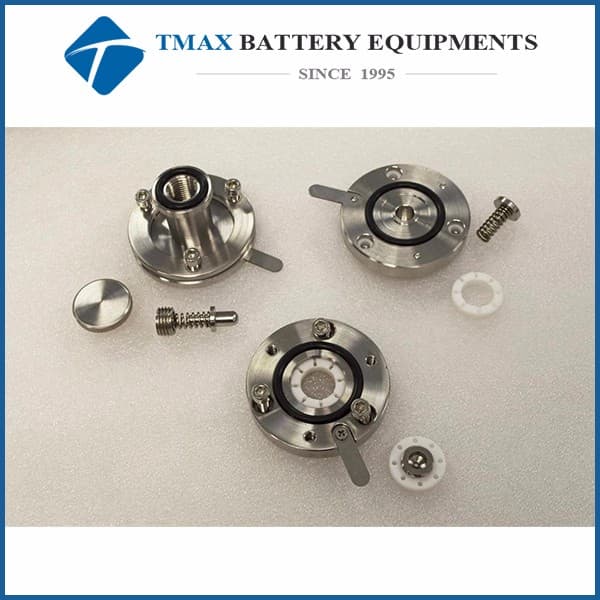

Features	Silicon O-ring in between the three plates to ensure a good sealing up to a temperature of 300 °C Adjustable spring tension on top to accept various electrode thicknesses Easy to separate after testing Small enough to be put into and taken out from a glove box

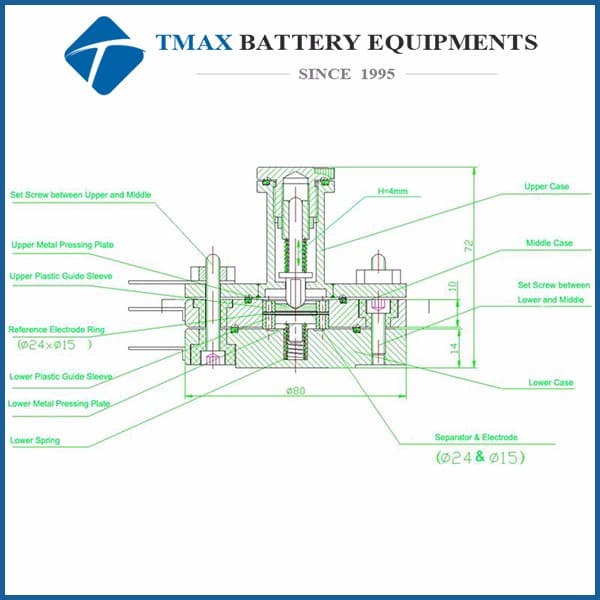

Spec	Electrode diameter :Φ24mm Dimension:Φ80mm*80mm
Optional Accessories	Various Sizes Of Discrete Battery Research Suite Can Be Customized
