Automatic Electrode Winder Machine For Electrode Of Capacitor and Cylindrical Battery

Automatic Electrode Winder Machine For Electrode Of Capacitor and Cylindrical Battery

Model Number:
TMAX-YS-BLY40
Type:
Electrode Winding Machine
Net Weight:
600kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Automatic Electrode Winder Machine For Electrode Of Capacitor and Cylindrical Battery

Function:

 ·Apply to cylindrical and
prismatic battery

 ·Replaceable winding needles,Suitable
for various of batteries,Model changed fast, simple

Technical parameters:

Machine model

Apply to cylindrical battery

Apply to prismatic battery

Suitable model

14430,14500,17500,17650
17670,18650,26650,3290

Width: 20~100mm
Thickness:3~15mm

Electrode pieces width

<65mm

<100mm

<135mm

<30~90mm

<90~150mm

<150~200mm

Electrode pieces length

≤1500mm

≤1500mm

Winding speed

3~5ppm

3~5ppm

Size

L*W*H 1300*800*1600mm

L*W*H 1500*900*1600mm

Weight

600kg

   700kg

Air supply

Compressed air: 0.6 ~ 0.7Mpa, Vacuum: -0.095Mpa

Positive pressure : 0.6 ~ 0.7 Mpa,

Vacuum:-0.095Mpa

Power supply

AC220V,0.8KW

AC220V, 1.0KW

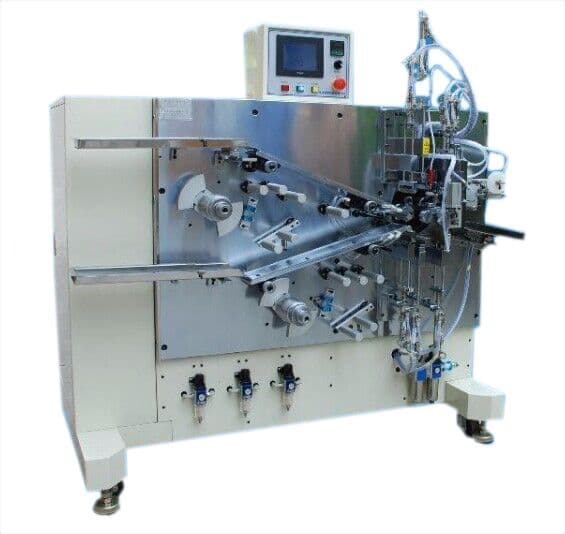

               Electrode Winder



 battery equipment
